Samtec provides a recommended PCB layout and land pattern for the IPL1-112-01-SM-D-K connector in their Application Notes document, which can be found on their website. It's essential to follow these guidelines to ensure proper mating and to prevent damage to the connector or PCB.
While the IPL1-112-01-SM-D-K connector is designed to be rugged, it's essential to evaluate its performance in your specific application. Samtec provides environmental testing data, such as vibration and shock testing, in their datasheet. However, it's recommended to consult with Samtec's technical support or perform your own testing to ensure the connector meets your specific requirements.
The IPL1-112-01-SM-D-K connector has an operating temperature range of -55°C to +125°C. However, it's essential to note that the temperature range may vary depending on the specific application and the materials used in the connector. Consult the datasheet or contact Samtec's technical support for more information.
Yes, the IPL1-112-01-SM-D-K connector is compatible with lead-free soldering processes. Samtec uses lead-free materials and manufacturing processes to ensure compliance with RoHS and other environmental regulations.
The IPL1-112-01-SM-D-K connector has a mating cycle life of 500 cycles minimum. However, this may vary depending on the specific application, mating forces, and environmental conditions. Consult the datasheet or contact Samtec's technical support for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IPL1-112-01-SM-D-K Overview

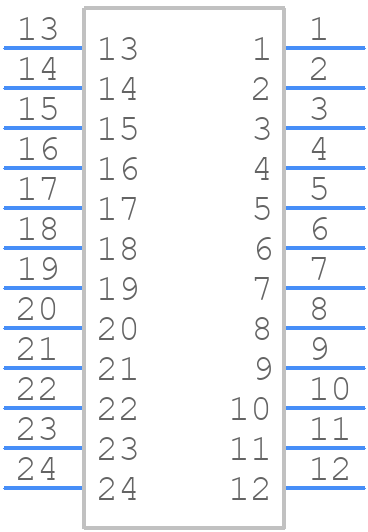

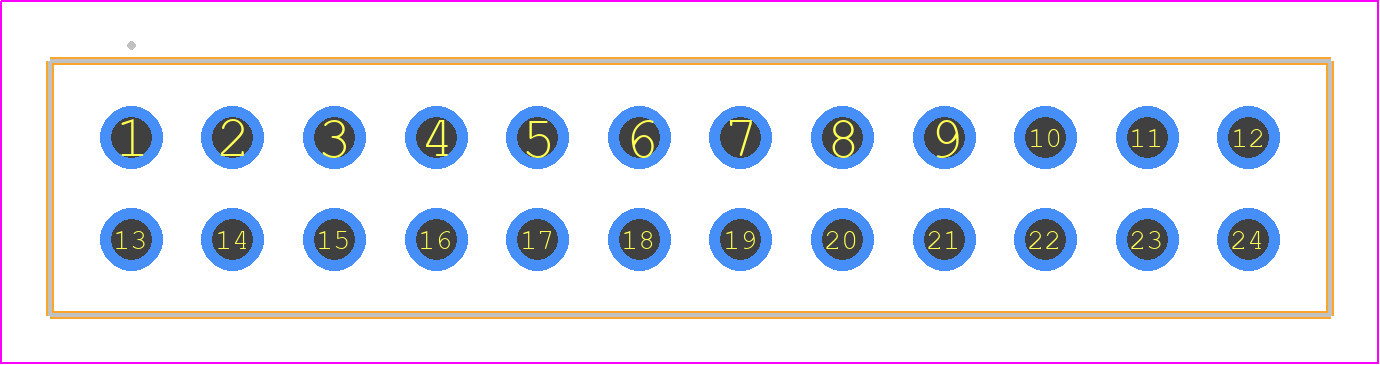

Use the download button to access the IPL1-112-01-SM-D-K schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like IPL1-,
or try a keyword search, such as Power Connectors
