IPL1-112-01-STL-D-K footprint, schematic symbol and 3D model by SAMTEC

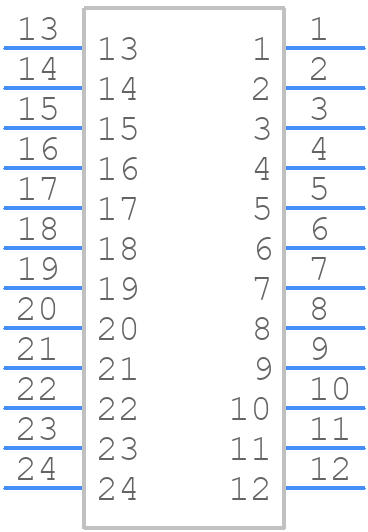

Symbol

click to zoom

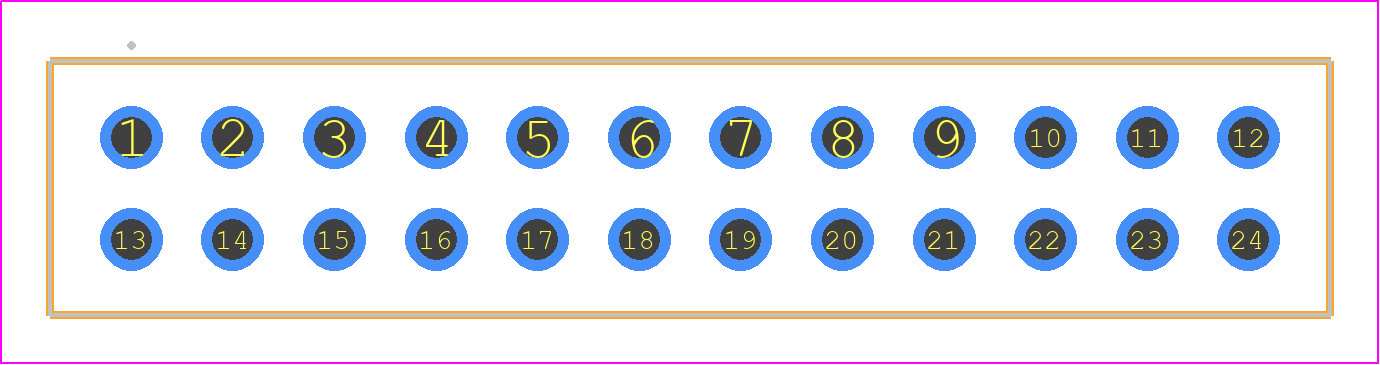

PCB Footprints

IPL1-112-01-STL-D-K - SAMTEC PCB footprint - Other - Other - IPL1-112-01-YYY-D-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-112-01-STL-D-K
Part Number IPL1-112-01-STL-D-K
Manufacturer SAMTEC
Pin Count 24
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-112-01-YYY-D-K
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-112-01-STL-D-K Details

Manufacturer Part Number:
IPL1-112-01-STL-D-K
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
6
Additional Feature:
RATED CURRENT (POWER): 4.8A
Body Breadth:
0.25 inch
Body Depth:
0.32 inch
Body Length:
1.26 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
MALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
24
UL Flammability Code:
94V-0

IPL1-112-01-STL-D-K Frequently Asked Questions (FAQs)

The recommended mating sequence for IPL1-112-01-STL-D-K is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the IPL1-112-01-STL-D-K is designed to withstand high-vibration environments. Samtec's STL series connectors are tested to meet the requirements of IEC 61373, which includes vibration testing.
The maximum operating temperature for IPL1-112-01-STL-D-K is 125°C. However, it's recommended to derate the current carrying capacity of the connector at higher temperatures to ensure reliable operation.
Yes, the IPL1-112-01-STL-D-K is compatible with lead-free soldering processes. Samtec's STL series connectors are designed to meet the requirements of RoHS and WEEE directives.
The typical contact resistance of IPL1-112-01-STL-D-K is less than 10 milliohms. However, this value may vary depending on the specific application and environmental conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPL1-112-01-STL-D-K Overview

Use the download button to access the IPL1-112-01-STL-D-K schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPL1-, or try a keyword search, such as Power Connectors
