IPL1-114-01-STL-D-RA footprint, schematic symbol and 3D model by SAMTEC

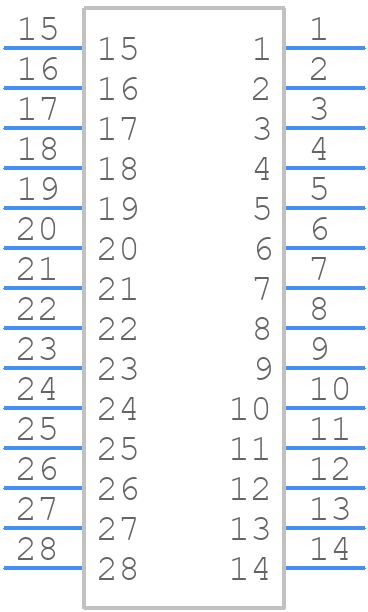

Symbol

click to zoom

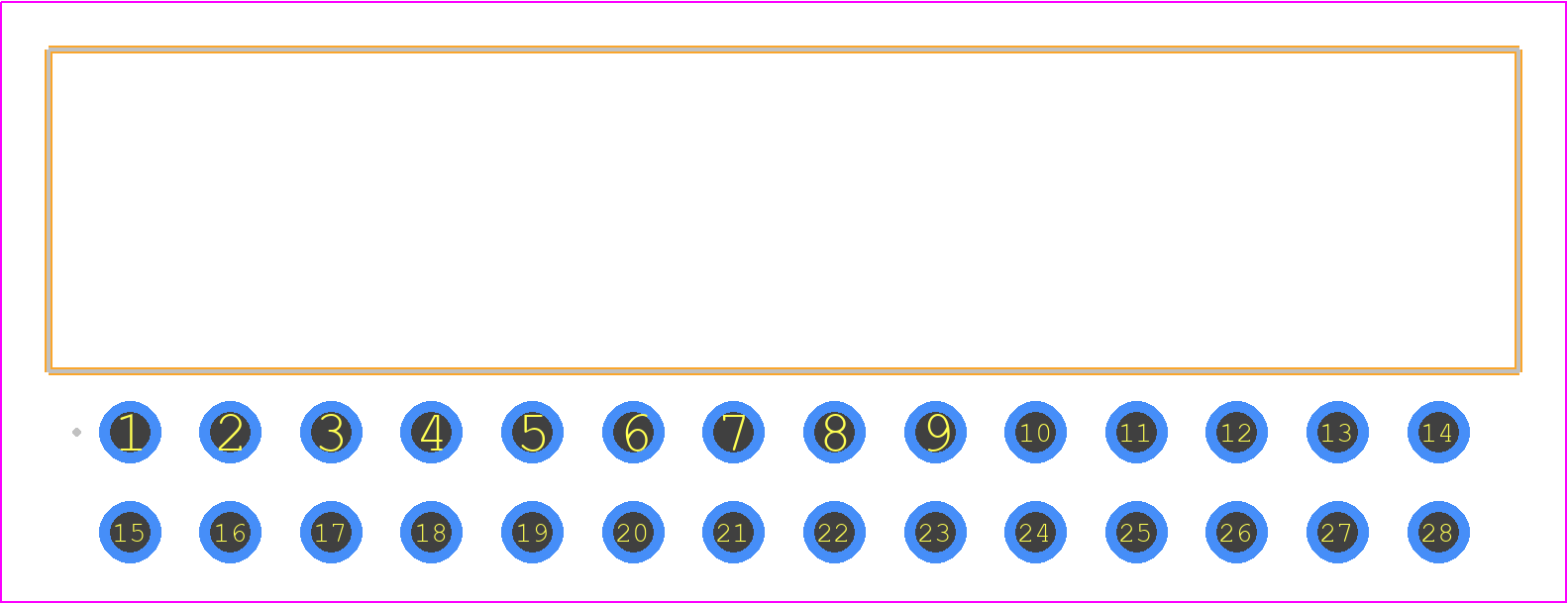

PCB Footprints

IPL1-114-01-STL-D-RA - SAMTEC PCB footprint - Other - Other - IPL1-114-01-YYY-D-RA

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-114-01-STL-D-RA
Part Number IPL1-114-01-STL-D-RA
Manufacturer SAMTEC
Pin Count 28
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-114-01-YYY-D-RA
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-114-01-STL-D-RA Details

Manufacturer Part Number:
IPL1-114-01-STL-D-RA
Manufacturer:
Samtec Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPL1-114-01-STL-D-RA Overview

Use the download button to access the IPL1-114-01-STL-D-RA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPL1-, or try a keyword search, such as Power Connectors
