IPL1-116-01-H-S-K footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

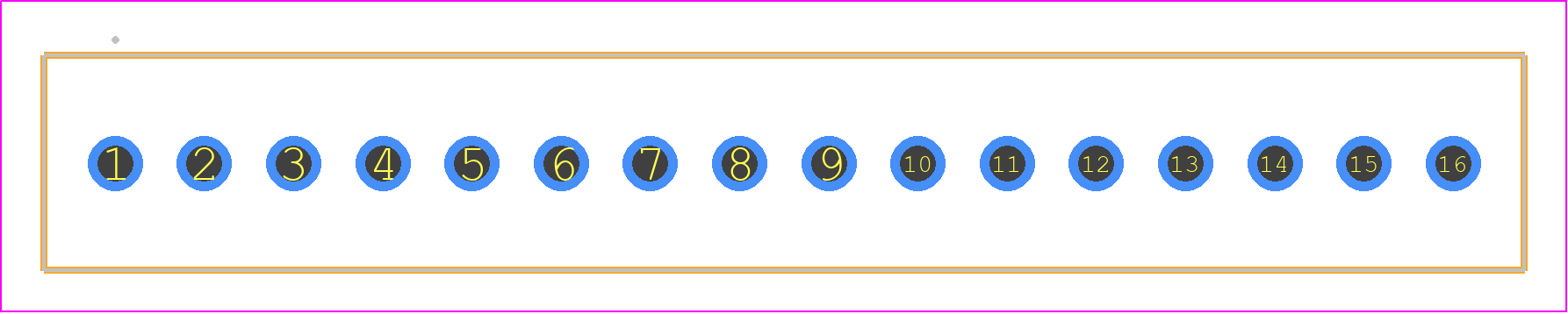

IPL1-116-01-H-S-K - SAMTEC PCB footprint - Other - Other - IPL1-116-01-YYY-S-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-116-01-H-S-K
Part Number IPL1-116-01-H-S-K
Manufacturer SAMTEC
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-116-01-YYY-S-K
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-116-01-H-S-K Details

Manufacturer Part Number:
IPL1-116-01-H-S-K
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Samtec Inc
YTEOL:
7.87
Body Breadth:
0.24 inch
Body Depth:
0.32 inch
Body Length:
1.6 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e4
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
16
UL Flammability Code:
94V-0

IPL1-116-01-H-S-K Frequently Asked Questions (FAQs)

The recommended mating sequence for the IPL1-116-01-H-S-K connector is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the IPL1-116-01-H-S-K connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibration levels up to 20 G's.
The maximum operating temperature for the IPL1-116-01-H-S-K connector is 125°C (257°F). It is designed to operate reliably in high-temperature environments.
Yes, the IPL1-116-01-H-S-K connector is designed for automated assembly processes. It has a pick-and-place compatible design and can be easily integrated into automated assembly lines.
The typical lead time for delivery of the IPL1-116-01-H-S-K connector varies depending on the quantity and availability. However, Samtec Inc typically quotes a lead time of 2-4 weeks for standard orders.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPL1-116-01-H-S-K Overview

Use the download button to access the IPL1-116-01-H-S-K schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPL1-, or try a keyword search, such as Power Connectors

Parts related to IPL1-116-01-H-S-K
