IPL1-116-02-L-D-K footprint, schematic symbol and 3D model by SAMTEC

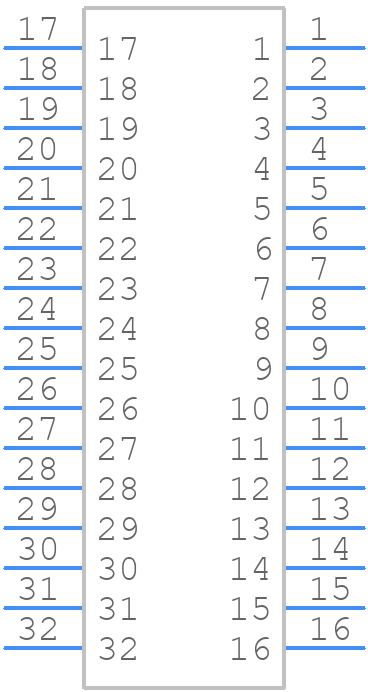

Symbol

click to zoom

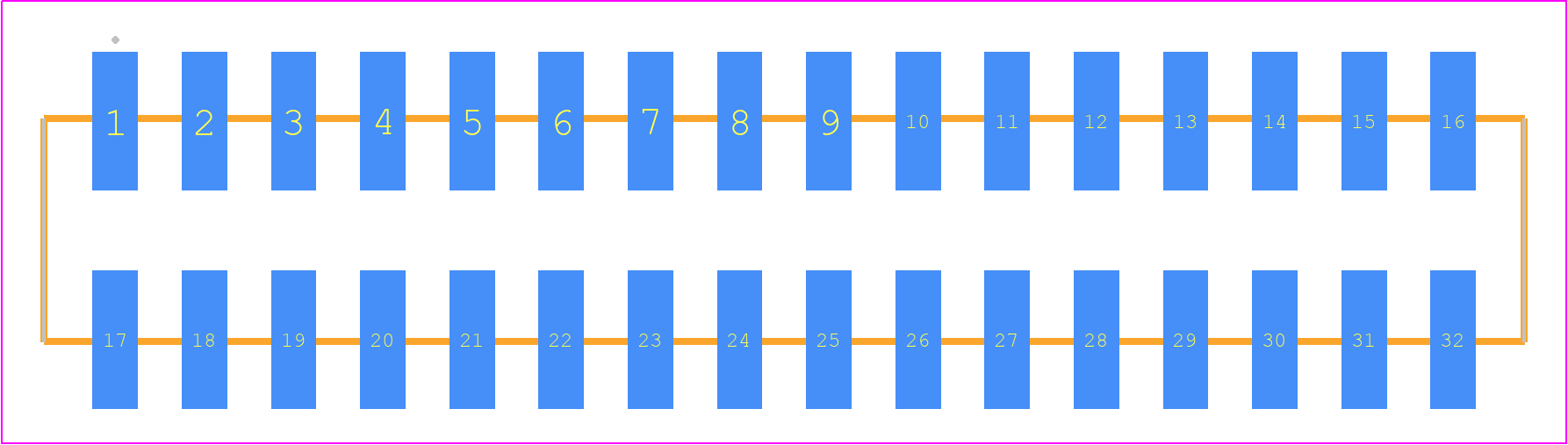

PCB Footprints

IPL1-116-02-L-D-K - SAMTEC PCB footprint - Other - Other - IPL1-116-02-YYY-D-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-116-02-L-D-K
Part Number IPL1-116-02-L-D-K
Manufacturer SAMTEC
Pin Count 32
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-116-02-YYY-D-K
Released Date Aug 24, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-116-02-L-D-K Details

Manufacturer Part Number:
IPL1-116-02-L-D-K
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
3 Weeks
Manufacturer:
Samtec Inc
YTEOL:
7.87
Additional Feature:
RATED CURRENT (POWER): 4.8A
Body Breadth:
0.25 inch
Body Depth:
0.345 inch
Body Length:
1.66 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
MALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
32
UL Flammability Code:
94V-0

IPL1-116-02-L-D-K Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPL1-116-02-L-D-K connector is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the IPL1-116-02-L-D-K connector is designed to withstand high-vibration environments and is suitable for applications with vibration levels up to 20 G.
Yes, the IPL1-116-02-L-D-K connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 125°C and humidity levels up to 95% RH.
The IPL1-116-02-L-D-K connector has a mating cycle life of 500 cycles minimum.
Yes, the IPL1-116-02-L-D-K connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPL1-116-02-L-D-K Overview

Use the download button to access the IPL1-116-02-L-D-K schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPL1-, or try a keyword search, such as Power Connectors
