IPL1-125-02-L-D-K footprint, schematic symbol and 3D model by SAMTEC

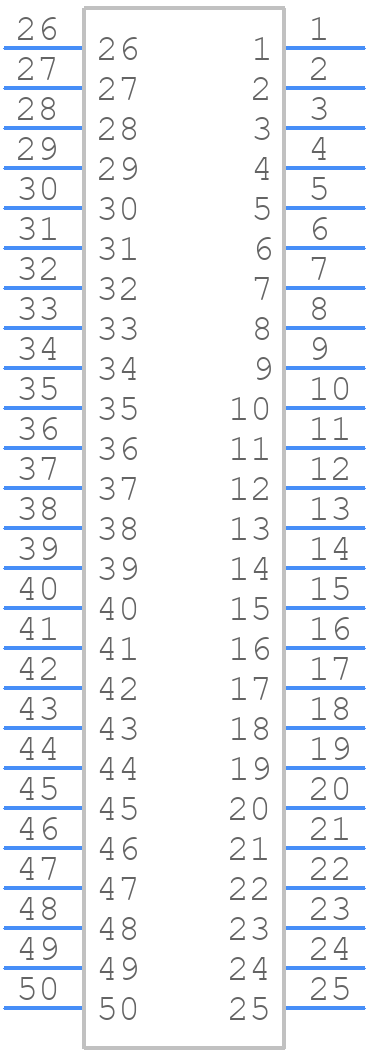

Symbol

click to zoom

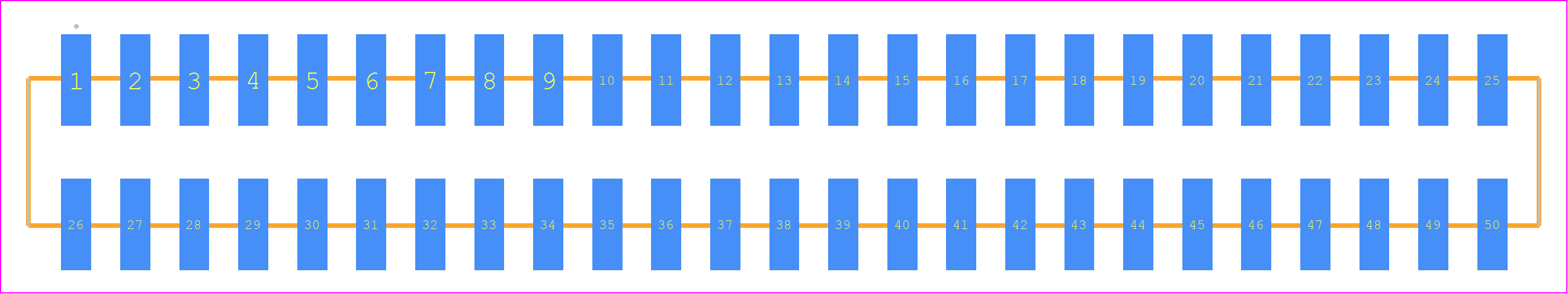

PCB Footprints

IPL1-125-02-L-D-K - SAMTEC PCB footprint - Other - Other - IPL1-125-02-YYY-D-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-125-02-L-D-K
Part Number IPL1-125-02-L-D-K
Manufacturer SAMTEC
Pin Count 50
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-125-02-YYY-D-K
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-125-02-L-D-K Details

Manufacturer Part Number:
IPL1-125-02-L-D-K
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
3 Weeks
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT (POWER): 4.8A
Body Breadth:
0.25 inch
Body Depth:
0.345 inch
Body Length:
2.56 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
MALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
50
UL Flammability Code:
94V-0

IPL1-125-02-L-D-K Frequently Asked Questions (FAQs)

The recommended torque is 0.5-1.5 Nm (4-12 in-lbs) for the screws on the IPL1-125-02-L-D-K connector, but it's always best to consult the specific screw manufacturer's recommendations.
Yes, the IPL1-125-02-L-D-K connector is designed to withstand vibrations and can be used in high-vibration environments. However, it's essential to ensure proper mounting and screw torque to prevent connector damage.
The IPL1-125-02-L-D-K connector has an operating temperature range of -55°C to 125°C (-65°F to 257°F), making it suitable for a wide range of applications.
Yes, the IPL1-125-02-L-D-K connector is compatible with lead-free soldering processes and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
The recommended cleaning process for the IPL1-125-02-L-D-K connector involves using a soft brush and a mild detergent solution. Avoid using harsh chemicals or abrasive materials that can damage the connector.
