IPL60R065C7AUMA1 - Infineon

Description: N-Channel 600 V 29A (Tc) 180W (Tc) Surface Mount PG-VSON-4-1

Download IPL60R065C7AUMA1 Model

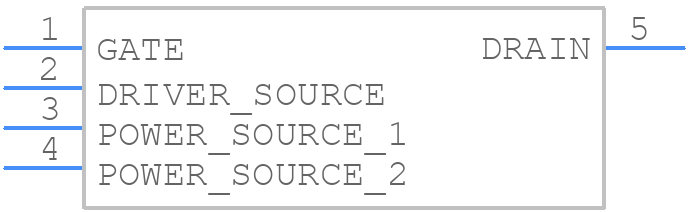

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IPL60R065C7AUMA1 - Infineon PCB footprint - Other - Other - IPL60R065C7AUMA1-3
click to zoom
3D Models
IPL60R065C7AUMA1 - Infineon  - 3D model - Other - IPL60R065C7AUMA1-3
click to zoom

IPL60R065C7AUMA1 Details

  • Manufacturer Part Number:

    IPL60R065C7AUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSON-4

  • Country Of Origin:

    Austria, Germany, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Avalanche Energy Rating (Eas):

    159 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    29 A

  • Drain-source On Resistance-Max:

    0.065 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PSSO-N4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2A

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    135 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
