IPL60R105P7AUMA1 - Infineon

Description: MOSFET HIGH POWER_NEW

Download IPL60R105P7AUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

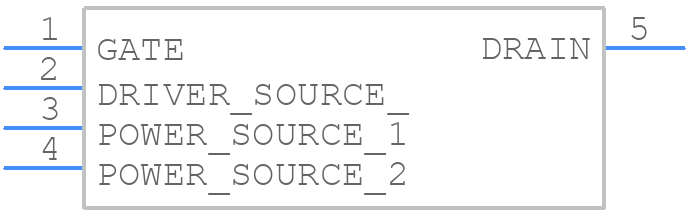

IPL60R105P7AUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
IPL60R105P7AUMA1 - Infineon PCB footprint - Other - Other - IPL60R105P7AUMA1-5
click to zoom
3D Models
IPL60R105P7AUMA1 - Infineon - 3D model - Other - IPL60R105P7AUMA1-5
click to zoom

IPL60R105P7AUMA1 Details

  • Manufacturer Part Number:

    IPL60R105P7AUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    105 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain-source On Resistance-Max:

    0.105 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PSSO-N4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2A

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    100 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IPL60R105P7AUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the IPL60R105P7AUMA1 is 175°C, as specified in the datasheet.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10 K/W is recommended. Additionally, the device should be mounted on a PCB with a thermal pad and thermal vias to dissipate heat efficiently.
  • The maximum current rating of the IPL60R105P7AUMA1 is 60A, as specified in the datasheet. However, this rating is dependent on the device's operating temperature and the PCB's thermal design.
  • To protect the IPL60R105P7AUMA1 from overvoltage and overcurrent, a suitable voltage regulator and current limiter should be used in the circuit design. Additionally, a fuse or circuit breaker can be used to prevent damage from excessive current.
  • The recommended gate drive voltage for the IPL60R105P7AUMA1 is between 10V and 15V, as specified in the datasheet. A higher gate drive voltage can improve the device's switching performance.
