IPS1-107-01-L-D-RA footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

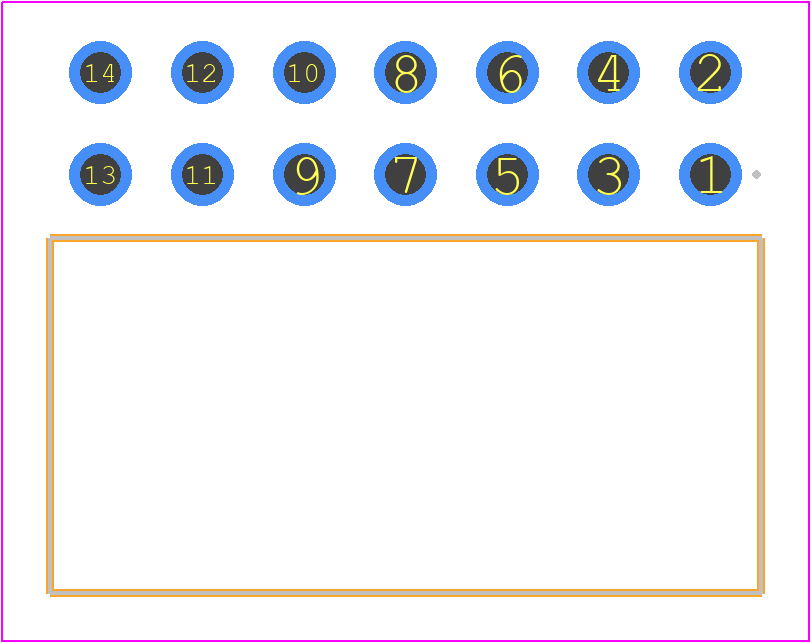

IPS1-107-01-L-D-RA - SAMTEC PCB footprint - Other - Other - IPS1-107-01-YY-D-RA

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPS1-107-01-L-D-RA
Part Number IPS1-107-01-L-D-RA
Manufacturer SAMTEC
Pin Count 14
Part Category Connector
Package Category Other
Footprint Name Other - IPS1-107-01-YY-D-RA
Released Date Jun 27, 2020
Last Modified Date Sep 9, 2025 9:48 AM UTC
Pinout / Pin List Click Here (Member Only)

IPS1-107-01-L-D-RA Details

Manufacturer Part Number:
IPS1-107-01-L-D-RA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT(POWER):5.9 A
Body Breadth:
0.195 inch
Body Depth:
0.503 inch
Body Length:
0.715 inch
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
14

IPS1-107-01-L-D-RA Frequently Asked Questions (FAQs)

The recommended torque for the screws on IPS1-107-01-L-D-RA is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, IPS1-107-01-L-D-RA is designed to meet the requirements of high-vibration applications, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
IPS1-107-01-L-D-RA is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's recommended to consult Samtec's temperature derating charts for specific guidance.
IPS1-107-01-L-D-RA has a mating cycle life of 500 cycles minimum, according to Samtec's testing and validation procedures.
Yes, IPS1-107-01-L-D-RA is designed for automated assembly and is compatible with standard pick-and-place machines and reflow soldering processes.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPS1-107-01-L-D-RA Overview

Use the download button to access the IPS1-107-01-L-D-RA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPS1-, or try a keyword search, such as Power Connectors
