IPS1-108-01-S-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

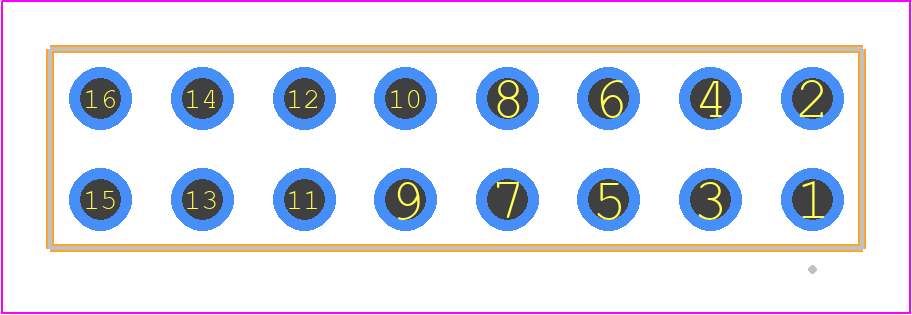

IPS1-108-01-S-D - SAMTEC PCB footprint - Other - Other - IPS1-108-XX-YY-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPS1-108-01-S-D
Part Number IPS1-108-01-S-D
Manufacturer SAMTEC
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - IPS1-108-XX-YY-D
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPS1-108-01-S-D Details

Manufacturer Part Number:
IPS1-108-01-S-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
3 Weeks, 3 Days
Manufacturer:
Samtec Inc
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO

IPS1-108-01-S-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPS1-108-01-S-D connector is 0.5-1.5 N·m (0.37-1.06 lbf·in) according to Samtec's application notes.
Yes, the IPS1-108-01-S-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the IPS1-108-01-S-D connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
Yes, the IPS1-108-01-S-D connector is RoHS and REACH compliant, meeting the requirements for lead-free and hazardous substance-free materials.
The IPS1-108-01-S-D connector is not designed for use in wet or humid environments. Samtec recommends using a connector with a higher ingress protection rating (IP67 or higher) for such applications.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPS1-108-01-S-D Overview

Use the download button to access the IPS1-108-01-S-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPS1-, or try a keyword search, such as Power Connectors
