Technical Content
Part Image

IPS1-110-01-S-D-VS - SAMTEC

Description: SAMTEC - IPS1-110-01-S-D-VS - SOCKET, 2.54MM, SMT, 2X10WAY

Download IPS1-110-01-S-D-VS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IPS1-110-01-S-D-VS - SAMTEC - PCB symbol
click to zoom
PCB Footprints

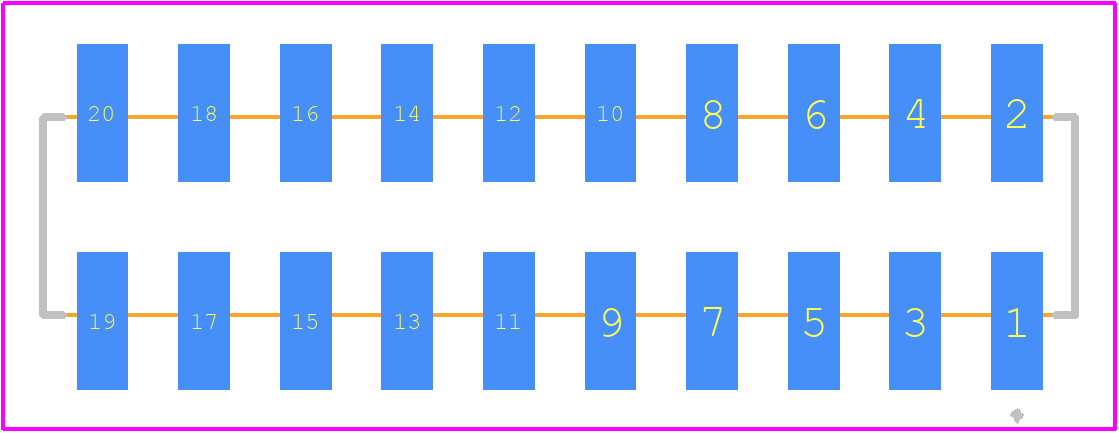

IPS1-110-01-S-D-VS - SAMTEC PCB footprint - Other - Other - IPS1-110-01-S-D-VS-1
click to zoom
3D Models
IPS1-110-01-S-D-VS - SAMTEC - 3D model - Other - IPS1-110-01-S-D-VS-1
click to zoom

IPS1-110-01-S-D-VS Details

  • Manufacturer Part Number:

    IPS1-110-01-S-D-VS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    3 Weeks, 5 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

IPS1-110-01-S-D-VS Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the IPS1-110-01-S-D-VS connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the IPS1-110-01-S-D-VS connector is designed to withstand vibration and shock according to IEC 61373 Cat 2 and EN 61373 Cat 2 standards. However, it's recommended to consult with Samtec's technical support for specific application requirements.
  • The IPS1-110-01-S-D-VS connector has an operating temperature range of -40°C to 125°C, but it's recommended to consult with Samtec's technical support for specific application requirements and potential derating.
  • Yes, the IPS1-110-01-S-D-VS connector is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
  • Samtec provides recommended PCB layout and footprint guidelines in their application notes and technical documentation. It's recommended to consult with Samtec's technical support for specific design requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPS1-110-01-S-D-VS Overview

Use the download button to access the IPS1-110-01-S-D-VS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPS1-, or try a keyword search, such as Power Connectors
