IPS1-111-01-SM-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

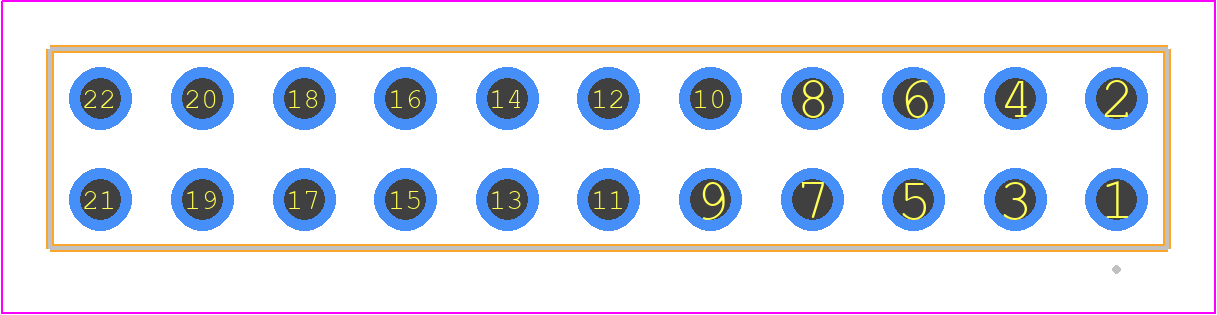

IPS1-111-01-SM-D - SAMTEC PCB footprint - Other - Other - IPS1-111-XX-YY-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPS1-111-01-SM-D
Part Number IPS1-111-01-SM-D
Manufacturer SAMTEC
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - IPS1-111-XX-YY-D
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPS1-111-01-SM-D Details

Manufacturer Part Number:
IPS1-111-01-SM-D
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Samtec Inc
Connector Type:
RECTANGULAR POWER CONNECTOR

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPS1-111-01-SM-D Overview

Use the download button to access the IPS1-111-01-SM-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPS1-, or try a keyword search, such as Power Connectors
