IPS1-120-01-S-D-RA footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

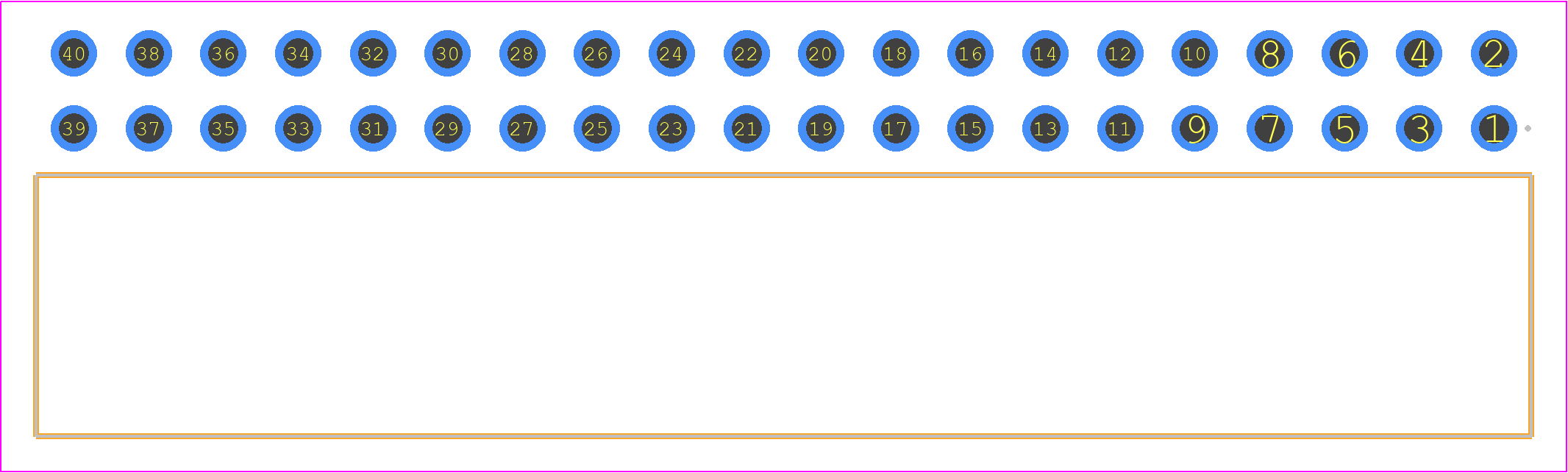

IPS1-120-01-S-D-RA - SAMTEC PCB footprint - Other - Other - IPS1-120-01-YY-D-RA

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPS1-120-01-S-D-RA
Part Number IPS1-120-01-S-D-RA
Manufacturer SAMTEC
Pin Count 40
Part Category Connector
Package Category Other
Footprint Name Other - IPS1-120-01-YY-D-RA
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPS1-120-01-S-D-RA Details

Manufacturer Part Number:
IPS1-120-01-S-D-RA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
10 Weeks
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT(POWER):5.9 A
Body Breadth:
0.195 inch
Body Depth:
0.503 inch
Body Length:
2.015 inch
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
40

IPS1-120-01-S-D-RA Frequently Asked Questions (FAQs)

The recommended mating sequence for the IPS1-120-01-S-D-RA connector is to mate the contacts first, followed by the insulator. This ensures proper alignment and prevents damage to the contacts.
Yes, the IPS1-120-01-S-D-RA connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high shock and vibration.
The maximum operating temperature for the IPS1-120-01-S-D-RA connector is 125°C. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
Yes, the IPS1-120-01-S-D-RA connector is compatible with lead-free soldering processes. It is designed to meet the requirements of RoHS and WEEE directives.
The typical contact resistance for the IPS1-120-01-S-D-RA connector is less than 10 milliohms. However, this value may vary depending on the specific application and environmental conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPS1-120-01-S-D-RA Overview

Use the download button to access the IPS1-120-01-S-D-RA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPS1-, or try a keyword search, such as Power Connectors
