IPS1-121-01-L-D footprint, schematic symbol and 3D model by SAMTEC

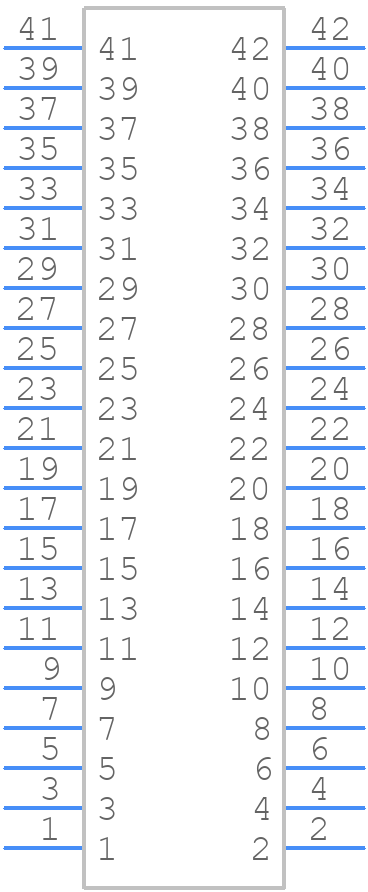

Symbol

click to zoom

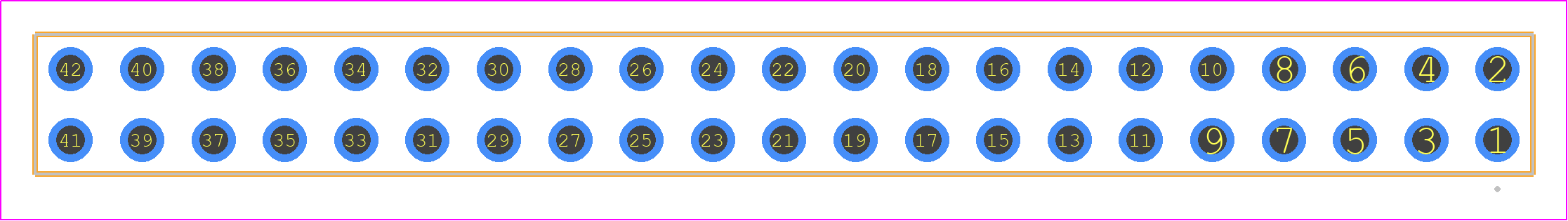

PCB Footprints

IPS1-121-01-L-D - SAMTEC PCB footprint - Other - Other - IPS1-121-XX-YY-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPS1-121-01-L-D
Part Number IPS1-121-01-L-D
Manufacturer SAMTEC
Pin Count 42
Part Category Connector
Package Category Other
Footprint Name Other - IPS1-121-XX-YY-D
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPS1-121-01-L-D Details

Manufacturer Part Number:
IPS1-121-01-L-D
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT(POWER):5.9 A
Body Breadth:
0.195 inch
Body Depth:
0.335 inch
Body Length:
2.115 inch
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
42

IPS1-121-01-L-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPS1-121-01-L-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPS1-121-01-L-D connector is compatible with lead-free soldering processes, with a recommended soldering temperature of 260°C (500°F) for 10-15 seconds.
The maximum operating temperature range for the IPS1-121-01-L-D connector is -55°C to 125°C (-65°F to 257°F), according to Samtec's datasheet.
Yes, the IPS1-121-01-L-D connector is designed to withstand high-vibration applications, with a tested vibration range of 10-2000 Hz, 20 G peak acceleration.
Yes, the IPS1-121-01-L-D connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances in electrical and electronic equipment.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPS1-121-01-L-D Overview

Use the download button to access the IPS1-121-01-L-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPS1-, or try a keyword search, such as Power Connectors
