IPS1-125-01-S-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

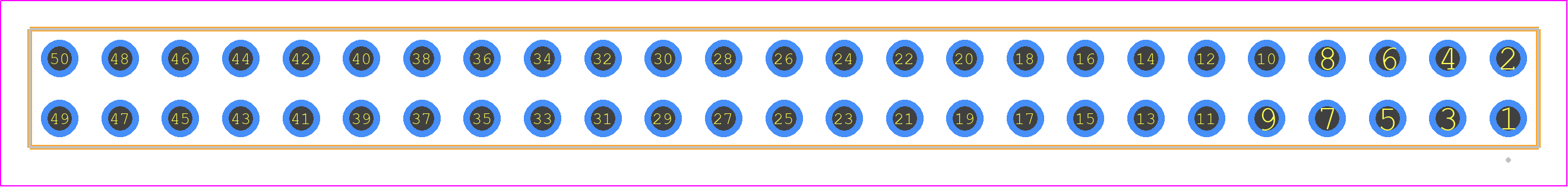

PCB Footprints

IPS1-125-01-S-D - SAMTEC PCB footprint - Other - Other - IPS1-125-XX-YY-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPS1-125-01-S-D
Part Number IPS1-125-01-S-D
Manufacturer SAMTEC
Pin Count 50
Part Category Connector
Package Category Other
Footprint Name Other - IPS1-125-XX-YY-D
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPS1-125-01-S-D Details

Manufacturer Part Number:
IPS1-125-01-S-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Mainland China, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
7.89
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
50

IPS1-125-01-S-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPS1-125-01-S-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPS1-125-01-S-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the IPS1-125-01-S-D connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
Yes, the IPS1-125-01-S-D connector can accommodate PCB thicknesses up to 2.36 mm (0.093 in). However, Samtec recommends consulting their application notes for specific guidance on PCB thickness and connector orientation.
The IPS1-125-01-S-D connector has a mating cycle life of 500 cycles minimum according to Samtec's testing and validation procedures.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPS1-125-01-S-D Overview

Use the download button to access the IPS1-125-01-S-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPS1-, or try a keyword search, such as Power Connectors
