IPS1025HTR-32 - STMicroelectronics

Description: High efficiency, high-side switch with extended diagnostics and smart driving for capacitive loads

Download IPS1025HTR-32 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

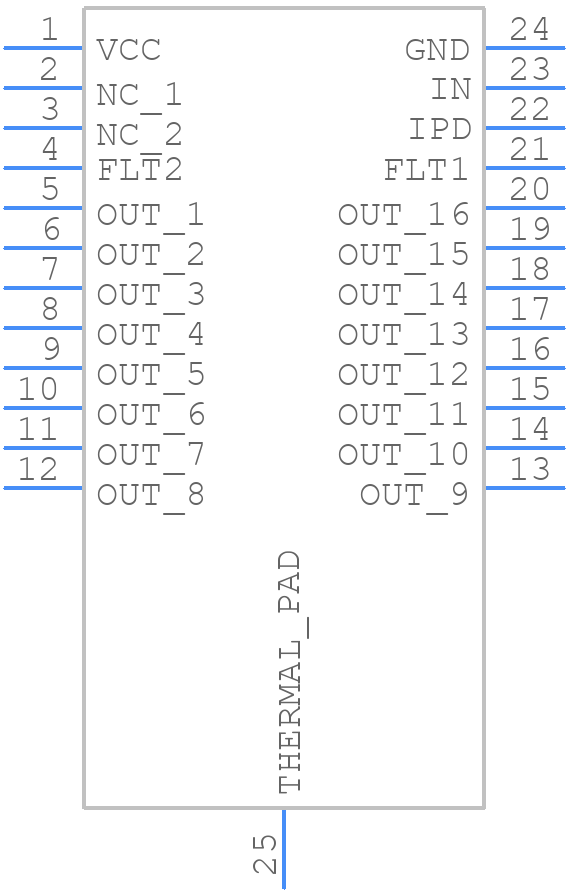

Symbol
IPS1025HTR-32 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IPS1025HTR-32 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24_2022-1
click to zoom
3D Models
IPS1025HTR-32 - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24_2022-1
click to zoom

IPS1025HTR-32 Details

  • Manufacturer Part Number:

    IPS1025HTR-32

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    11

  • Built-in Protections:

    OVERLOAD; OVER VOLTAGE; TRANSIENT

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    5.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.42 mm

  • Supply Current-Max:

    2.55 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    100 µs

  • Turn-on Time:

    25 µs

  • Width:

    7.5 mm

IPS1025HTR-32 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable operation in high-temperature environments, it is essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider the device's thermal derating. Additionally, the device should be operated within the specified junction temperature range (TJ) of -40°C to 150°C.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it is recommended to keep the input voltage within the specified range of 3.3V ± 10%.
  • To prevent electrostatic discharge (ESD) damage, it is essential to follow proper ESD handling and assembly procedures, such as using ESD-protected workstations, wrist straps, and packaging materials. The device should also be stored in its original packaging or in an ESD-protected container when not in use.
  • STMicroelectronics recommends a soldering profile with a peak temperature of 260°C, a dwell time above 217°C of 30-60 seconds, and a total process time of 3-5 minutes. It is essential to follow the recommended soldering profile to prevent damage to the device.
