IPS160HF - STMicroelectronics

Description: 60 V, 60 mΩ single high-side switches with short start-up propagation delay

Download IPS160HF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

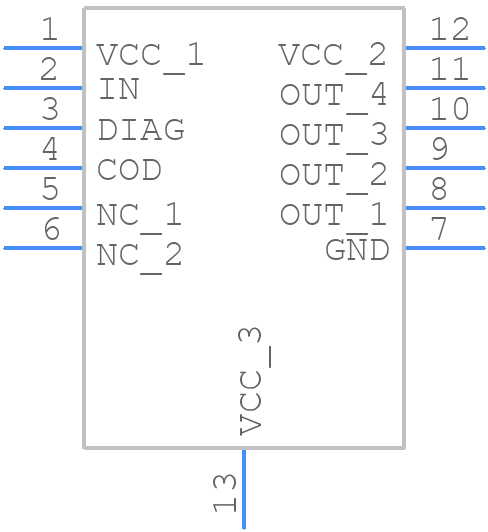

IPS160HF - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IPS160HF - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-12_1.7
click to zoom
3D Models
IPS160HF - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-12_1.7
click to zoom

IPS160HF Details

  • Manufacturer Part Number:

    IPS160HF

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2020-06-29

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

IPS160HF Frequently Asked Questions (FAQs)

  • The IPS160HF can operate from -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • The IPS160HF requires a dual power supply: VCC (5V ± 10%) for the logic and VBB (12V ± 10%) for the high-side driver. Ensure proper decoupling and filtering of the power supplies to prevent noise and oscillations.
  • To minimize electromagnetic interference (EMI) and ensure proper operation, follow STMicroelectronics' recommended PCB layout guidelines, including keeping the high-current paths short and away from sensitive analog signals.
  • Implement overcurrent protection using an external sense resistor and a comparator or a dedicated overcurrent protection IC. Also, ensure the power supply is protected against overvoltage conditions using a voltage regulator or a transient voltage suppressor (TVS).
  • The typical rise and fall time of the IPS160HF's output is around 100 ns, but this can vary depending on the load, PCB layout, and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPS160HF Overview

Use the download button to access the IPS160HF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPS16, or try a keyword search, such as Peripheral Drivers
