IPS2050H-32 - STMicroelectronics

Description: High efficiency, high-side switch with extended diagnostics and smart driving for capacitive loads

Download IPS2050H-32 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

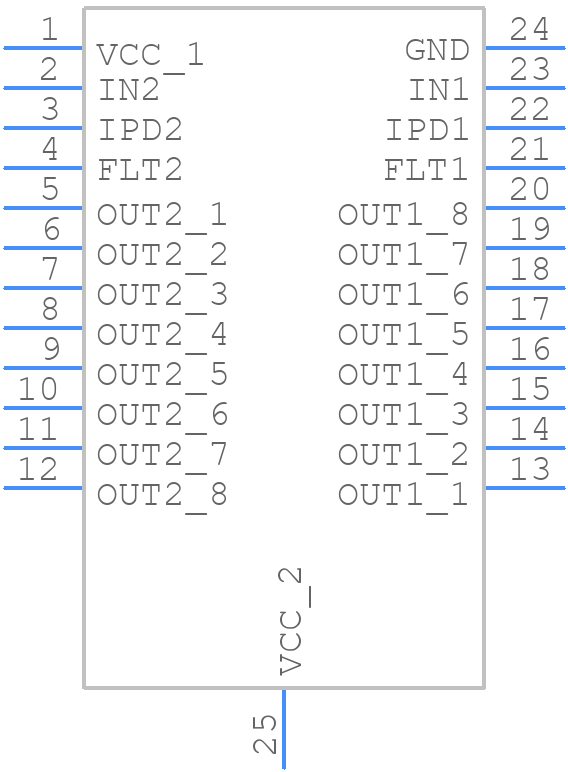

Symbol
IPS2050H-32 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IPS2050H-32 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24 1
click to zoom
3D Models
IPS2050H-32 - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24 1
click to zoom

IPS2050H-32 Details

  • Manufacturer Part Number:

    IPS2050H-32

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    10

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE; OVER VOLTAGE; OVERLOAD

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    5.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.42 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    60 µs

  • Turn-on Time:

    25 µs

  • Width:

    7.5 mm

IPS2050H-32 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The selection of the inductor depends on the specific application requirements, such as the output voltage, current, and frequency. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website.
  • The maximum junction temperature of the IPS2050H-32 is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
  • Yes, the IPS2050H-32 is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's recommended to consult with STMicroelectronics for specific requirements and qualifications.
  • STMicroelectronics provides a troubleshooting guide in the application note AN5323, which covers common issues and their solutions. Additionally, the company offers technical support and FAQs on their website.
