IPS2050HQ-32 - STMicroelectronics

Description: High efficiency, high-side switch with extended diagnostics and smart driving for capacitive loads

Download IPS2050HQ-32 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

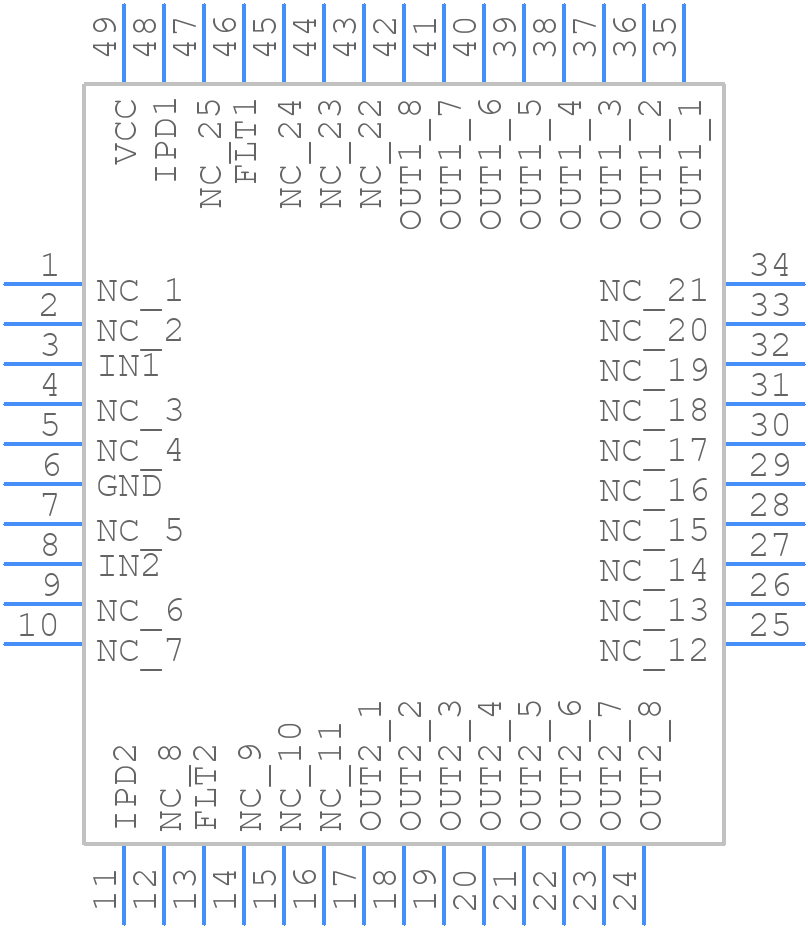

IPS2050HQ-32 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IPS2050HQ-32 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48L
click to zoom
3D Models
IPS2050HQ-32 - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN48L
click to zoom

IPS2050HQ-32 Details

  • Manufacturer Part Number:

    IPS2050HQ-32

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    10

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-XQCC-N48

  • Length:

    8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-SOURCE

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    5.6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24X.32,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Turn-off Time:

    60 µs

  • Turn-on Time:

    25 µs

  • Width:

    6 mm

IPS2050HQ-32 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The IPS2050HQ-32 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The application note AN5323 provides a detailed example of how to implement overcurrent protection.
  • The IPS2050HQ-32 is rated for operation from -40°C to 150°C, but the maximum operating temperature range depends on the specific application and power dissipation. Consult the datasheet and application notes for more information.
  • The power dissipation of the IPS2050HQ-32 can be calculated using the equation Pd = (Vin x Iin) + (Vout x Iout), where Vin is the input voltage, Iin is the input current, Vout is the output voltage, and Iout is the output current. Consult the datasheet for more information on how to calculate power dissipation.
  • The recommended input capacitor value for the IPS2050HQ-32 is 10uF to 22uF, depending on the input voltage and frequency. Consult the datasheet and application notes for more information on input capacitor selection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPS2050HQ-32 Overview

Use the download button to access the IPS2050HQ-32 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPS20, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
