IPS4260L - STMicroelectronics

Description: Power Switch ICs - Power Distribution INDUSTRIAL & POWER CONVERSION

Download IPS4260L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

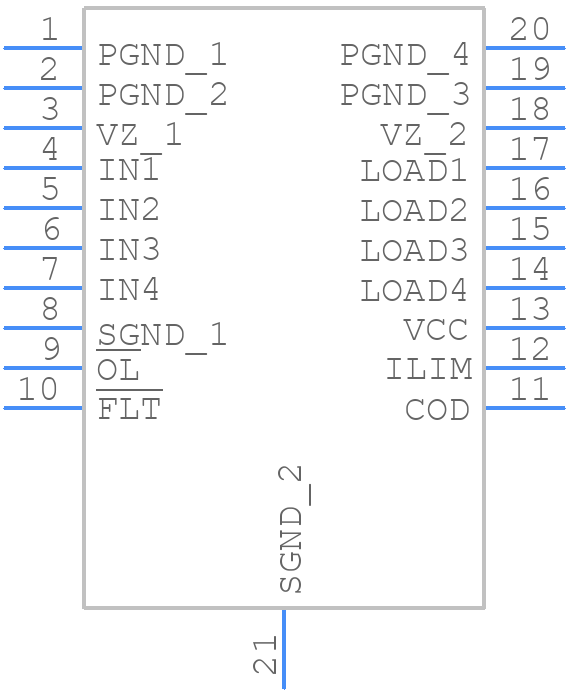

IPS4260L - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IPS4260L - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP20
click to zoom
3D Models
IPS4260L - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP20
click to zoom

IPS4260L Details

  • Manufacturer Part Number:

    IPS4260L

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

IPS4260L Frequently Asked Questions (FAQs)

  • The IPS4260L can operate from -40°C to 150°C, making it suitable for high-reliability applications.
  • The IPS4260L requires a single 5V supply voltage (VCC) and a separate voltage supply (VBOOST) for the internal charge pump. Ensure VCC is decoupled with a 10nF capacitor and VBOOST is decoupled with a 1nF capacitor.
  • To minimize electromagnetic interference (EMI), place the IPS4260L near the load, use a ground plane, and keep the high-current paths short and wide. Avoid routing high-frequency signals under the device.
  • The IPS4260L has an internal current sense resistor (RSENSE) that sets the overcurrent threshold. To configure for different load currents, adjust the RSENSE value or use an external sense resistor.
  • The EN pin is an active-high input that enables or disables the IPS4260L. When EN is low, the device is in shutdown mode, reducing power consumption.
