IPS4260LTR - STMicroelectronics

Description: Power Switch/Driver 1:1 N-Channel 2A 20-HTSSOP

Download IPS4260LTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

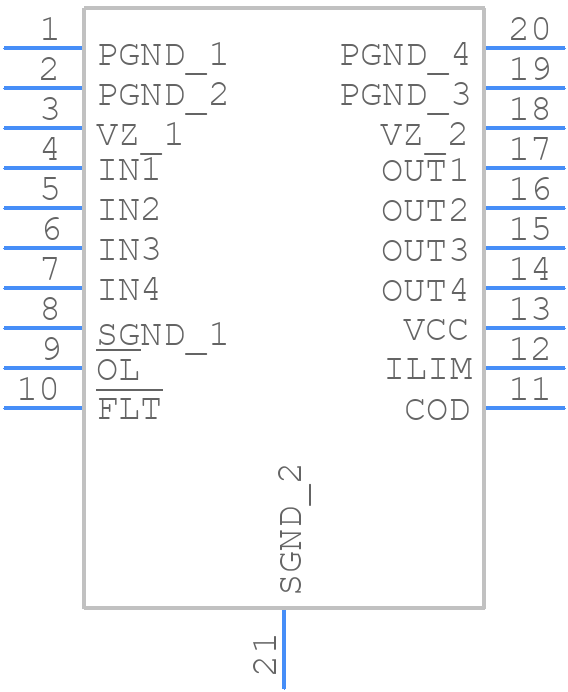

Symbol
IPS4260LTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IPS4260LTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP20
click to zoom
3D Models
IPS4260LTR - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP20
click to zoom

IPS4260LTR Details

  • Manufacturer Part Number:

    IPS4260LTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    20

IPS4260LTR Frequently Asked Questions (FAQs)

  • The IPS4260LTR can operate from -40°C to 150°C, making it suitable for high-reliability applications.
  • The IPS4260LTR requires a single 5V supply voltage (VCC) and a separate voltage supply (VBOOST) for the internal charge pump. Ensure VCC is decoupled with a 10uF capacitor and VBOOST is decoupled with a 1uF capacitor.
  • To minimize electromagnetic interference (EMI), place the IPS4260LTR close to the power supply, use a solid ground plane, and keep the high-current paths short and wide. Avoid routing high-frequency signals near the device.
  • Configure the IPS4260LTR by setting the EN pin high, selecting the desired current limit with the ILIM pin, and adjusting the output voltage with the VOUT pin. Refer to the datasheet for specific configuration details.
  • The IPS4260LTR has a high power density, so ensure good thermal conductivity by using a heat sink, thermal interface material, and a PCB with thermal vias. Keep the device away from heat sources and ensure good airflow.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPS4260LTR Overview

Use the download button to access the IPS4260LTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPS42, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
