IPT012N08N5 - Infineon

Description: OptiMOS 5 Power-Transistor, 80 V

Download IPT012N08N5 Model

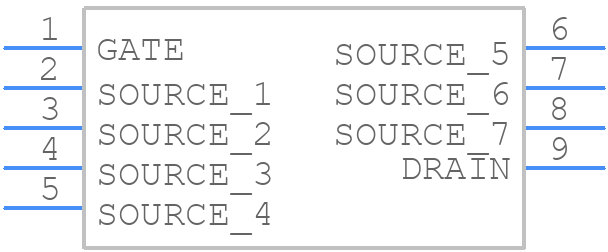

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

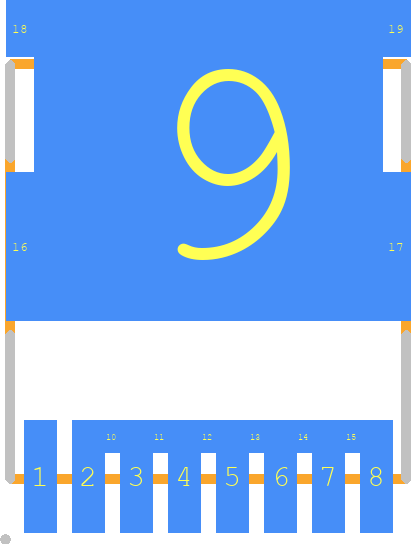

IPT012N08N5 - Infineon PCB footprint - Other - Other - PG-HSOF-8-1
click to zoom
3D Models
IPT012N08N5 - Infineon  - 3D model - Other - PG-HSOF-8-1
click to zoom

IPT012N08N5 Details

  • Manufacturer Part Number:

    IPT012N08N5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Germany, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    817 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    80 V

  • Drain Current-Max (ID):

    300 A

  • Drain-source On Resistance-Max:

    0.0012 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    150 pF

  • JESD-30 Code:

    R-PSSO-F2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    375 W

  • Pulsed Drain Current-Max (IDM):

    1200 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IPT012N08N5 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IPT012N08N5 is -40°C to 150°C.
  • To ensure reliability, follow the recommended PCB layout and thermal management guidelines, and ensure proper cooling and heat dissipation.
  • The recommended gate resistor value for IPT012N08N05 is between 10Ω to 100Ω, depending on the specific application and switching frequency.
  • Yes, IPT012N08N5 can be used in parallel to increase current handling, but ensure proper synchronization and thermal management to avoid uneven current distribution.
  • Use a suitable overvoltage protection circuit and a current sense resistor to monitor and limit the current, and consider adding a fuse or circuit breaker for added protection.
