IPT015N10N5 - Infineon

Description: Trans MOSFET N-CH 100V 300A Automotive 9-Pin(8+Tab) HSOF T/R

Download IPT015N10N5 Model

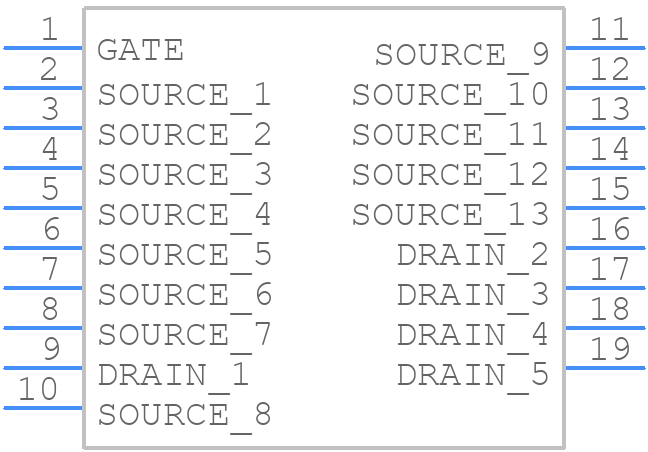

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

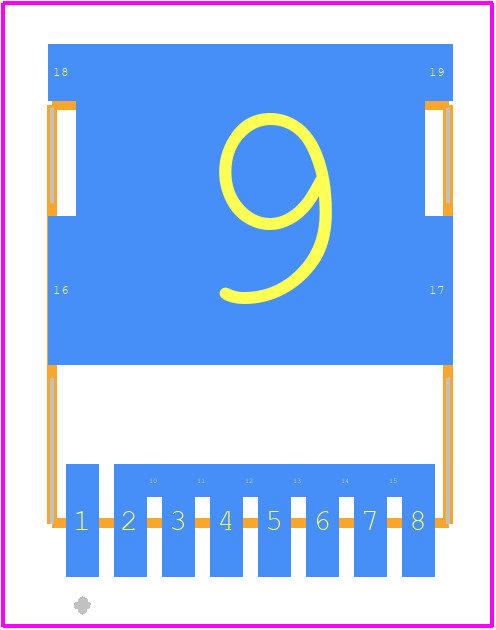

IPT015N10N5 - Infineon PCB footprint - Other - Other - PG-HSOF-8-1_2
click to zoom

IPT015N10N5 Details

  • Manufacturer Part Number:

    IPT015N10N5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Germany, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    652 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    32 A

  • Drain-source On Resistance-Max:

    0.0015 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PSSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    1200 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IPT015N10N5 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IPT015N10N5 is -40°C to 150°C.
  • To ensure reliability, follow the recommended PCB layout and thermal management guidelines, and ensure proper cooling and heat dissipation.
  • The recommended gate resistor value for IPT015N10N5 is between 10Ω to 100Ω, depending on the specific application and switching frequency.
  • Yes, IPT015N10N5 is suitable for high-frequency applications up to 100 kHz, but ensure proper PCB layout and decoupling to minimize parasitic inductance and capacitance.
  • Use a suitable overvoltage protection (OVP) circuit and overcurrent protection (OCP) mechanism, such as a fuse or current-sensing resistor, to prevent damage to the device.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPT015N10N5 Overview

Use the download button to access the IPT015N10N5 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like IPT01, or try a keyword search, such as Power Field-Effect Transistors

Parts related to IPT015N10N5

Showing 0 results

IPT015N10N5 Alternates

Showing results

Image Part Number Model
Part Image IPT015N10N5ATMA1 Infineon Technologies AG

Power Field-Effect Transistor, 32A I(D), 100V, 0.0015ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET
