IPT015N10N5ATMA1 - Infineon

Description: MOSFET N-Ch 100V 300A OptiMOS5 HSOF8

Download IPT015N10N5ATMA1 Model

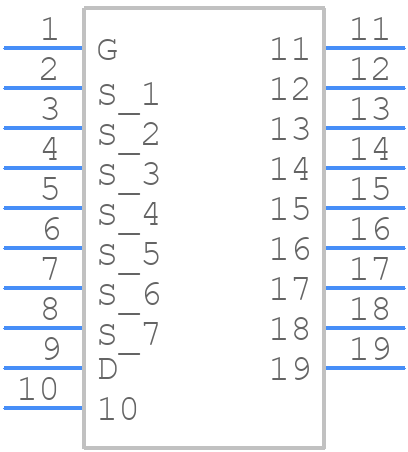

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

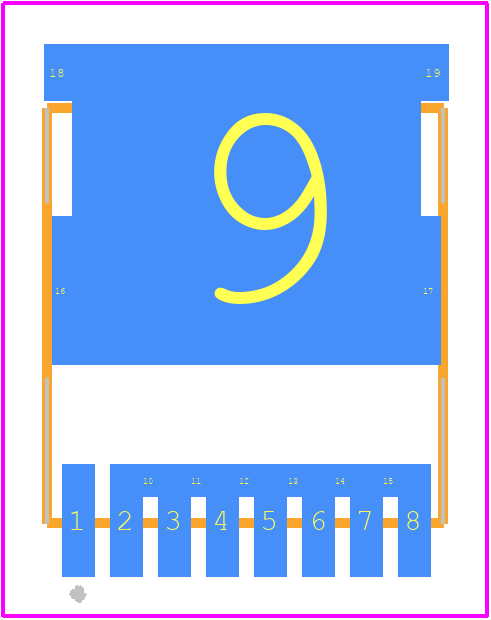

PCB Footprints
IPT015N10N5ATMA1 - Infineon PCB footprint - Other - Other - PG-HSOF-8-1_1
click to zoom
3D Models
IPT015N10N5ATMA1 - Infineon  - 3D model - Other - PG-HSOF-8-1_1
click to zoom

IPT015N10N5ATMA1 Details

  • Manufacturer Part Number:

    IPT015N10N5ATMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Germany, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    652 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    32 A

  • Drain-source On Resistance-Max:

    0.0015 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PSSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    1200 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IPT015N10N5ATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IPT015N10N5ATMA1 is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.
  • The recommended gate resistor value for IPT015N10N5ATMA1 is between 10Ω and 100Ω, depending on the specific application and switching frequency.
  • Yes, IPT015N10N5ATMA1 is qualified according to AEC-Q101, making it suitable for high-reliability applications such as automotive systems.
  • To protect the device from ESD, handle the device by the body, use an ESD wrist strap or mat, and ensure that all equipment is grounded.
