IPT059N15N3ATMA1 - Infineon

Description: MOSFET TRENCH >=100V

Download IPT059N15N3ATMA1 Model

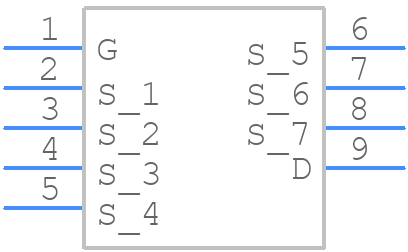

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

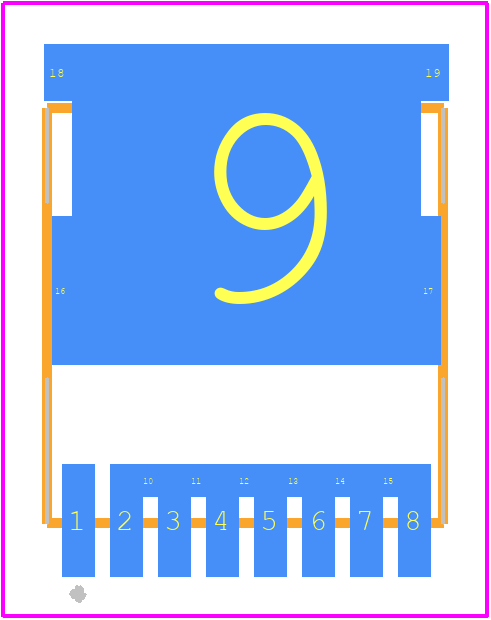

IPT059N15N3ATMA1 - Infineon PCB footprint - Other - Other - PG-HSOF-8-1_1
click to zoom
3D Models
IPT059N15N3ATMA1 - Infineon  - 3D model - Other - PG-HSOF-8-1_1
click to zoom

IPT059N15N3ATMA1 Details

  • Manufacturer Part Number:

    IPT059N15N3ATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HSOF-8-1, 8 PIN

  • Country Of Origin:

    Austria, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    520 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    150 V

  • Drain Current-Max (ID):

    155 A

  • Drain-source On Resistance-Max:

    0.0059 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PSSO-F2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    375 W

  • Pulsed Drain Current-Max (IDM):

    620 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IPT059N15N3ATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IPT059N15N3ATMA1 is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of ≤ 1.5 K/W, and ensuring good airflow around the device.
  • The recommended gate resistor value for IPT059N15N3ATMA1 is between 10 Ω to 100 Ω, depending on the specific application and switching frequency.
  • Yes, IPT059N15N3ATMA1 is qualified according to AEC-Q101, making it suitable for high-reliability applications such as automotive systems.
  • Use a suitable overvoltage protection circuit and a current sense resistor to monitor and limit the current, and consider using a fuse or a current limiter to protect the device.
