IPT1-110-01-L-D-VS footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

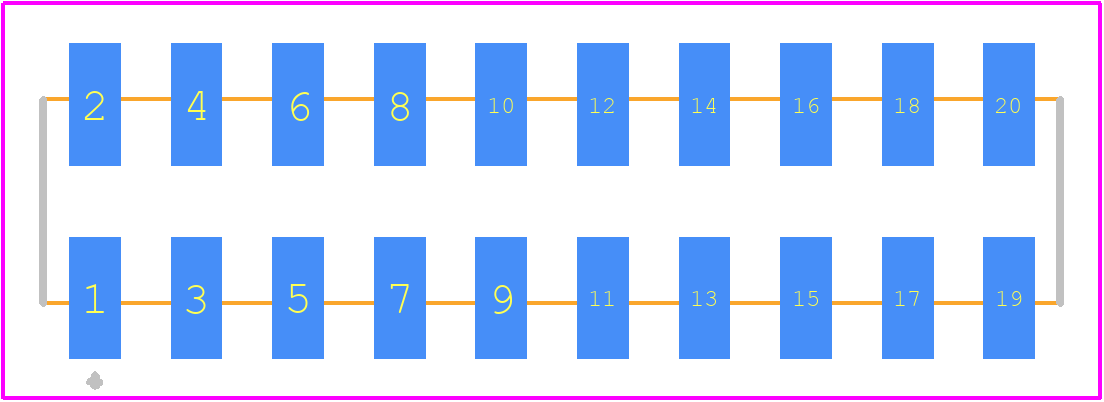

IPT1-110-01-L-D-VS - SAMTEC PCB footprint - Other - Other - IPT1-110-01-L-D-VS-2

click to zoom

3D Models

IPT1-110-01-L-D-VS - SAMTEC - 3D model - Other - IPT1-110-01-L-D-VS-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPT1-110-01-L-D-VS
Part Number IPT1-110-01-L-D-VS
Manufacturer SAMTEC
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - IPT1-110-01-L-D-VS-2
Released Date Jun 16, 2021
Last Modified Date May 18, 2023 10:57 AM UTC
Pinout / Pin List Click Here (Member Only)

IPT1-110-01-L-D-VS Details

Manufacturer Part Number:
IPT1-110-01-L-D-VS
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
9.1
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2.54 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
20

IPT1-110-01-L-D-VS Frequently Asked Questions (FAQs)

The recommended torque for the screw locks on IPT1-110-01-L-D-VS is 0.5-1.5 Nm (0.36-1.08 lbf-in).
Yes, IPT1-110-01-L-D-VS is designed to withstand high-vibration applications. Samtec's IPT series is tested to meet the requirements of IEC 61373 Cat 2, which includes vibration testing.
The mating cycle life of IPT1-110-01-L-D-VS is 500 cycles minimum, per Samtec's testing and validation procedures.
Yes, IPT1-110-01-L-D-VS is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F).
The operating temperature range of IPT1-110-01-L-D-VS is -55°C to 125°C (-133°F to 257°F).

Trust Checks

Community Provided

System Verified

Community Approved

IPT1-110-01-L-D-VS Overview

Use the download button to access the IPT1-110-01-L-D-VS schematic symbol, PCB footprint, and 3D model.
