Part Image

IPT1-110-01-L-D - SAMTEC

Description: Samtec IPT1 Series, 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Through Hole Termination, 9A

Download IPT1-110-01-L-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IPT1-110-01-L-D - SAMTEC - PCB symbol
click to zoom
PCB Footprints

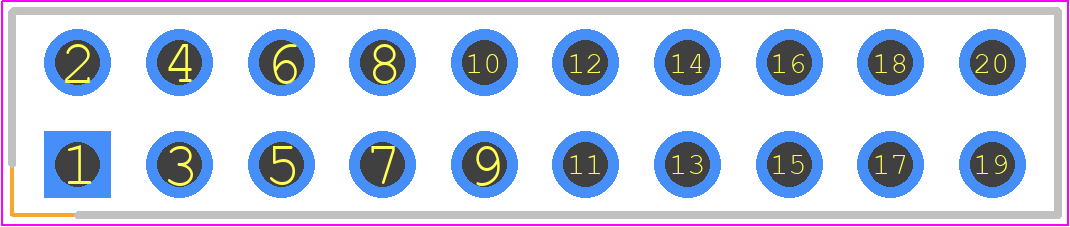

IPT1-110-01-L-D - SAMTEC PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - IPT1-110-01-L-D
click to zoom
3D Models
IPT1-110-01-L-D - SAMTEC - 3D model - Header, Receptacle - Straight PTH Box - IPT1-110-01-L-D
click to zoom

IPT1-110-01-L-D Details

  • Manufacturer Part Number:

    IPT1-110-01-L-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    MINI MATE, SHROUDED

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

IPT1-110-01-L-D Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the IPT1-110-01-L-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm).
  • Yes, the IPT1-110-01-L-D connector is designed to withstand high-vibration environments and is suitable for applications where vibration is a concern.
  • Yes, the IPT1-110-01-L-D connector is designed to operate in harsh environments, including high temperatures up to 125°C and high humidity. However, it's recommended to consult with Samtec's application engineers for specific guidance on environmental considerations.
  • The IPT1-110-01-L-D connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating is required.
  • Yes, the IPT1-110-01-L-D connector is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these regulations.
