- Part Number IPT60R022S7
- Manufacturer Infineon
- Pin Count 12
- Part Category MOSFET (N-Channel)
- Package Category Other
- Footprint Name Other - PG-HSOF-8-2_23
- Released Date Jan 10, 2024
- Last Modified Date Oct 29, 2024 5:23 AM UTC
- Pinout / Pin List Click Here (Member Only)
IPT60R022S7 Details
-
Manufacturer Part Number:
IPT60R022S7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Germany, Malaysia
-
ECCN Code:
EAR99
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
7
-
Avalanche Energy Rating (Eas):
289 mJ
-
Case Connection:
DRAIN
-
Configuration:
SINGLE WITH BUILT-IN DIODE
-
DS Breakdown Voltage-Min:
600 V
IPT60R022S7 Frequently Asked Questions (FAQs)
-
The maximum operating temperature of the IPT60R022S7 is 175°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -40°C to 150°C for optimal performance and reliability.
-
To ensure proper cooling, it's essential to provide a sufficient heat sink and thermal interface material (TIM) between the device and the heat sink. The heat sink should be designed to dissipate the maximum power dissipation of the device, which is 60W. Additionally, ensure good airflow around the heat sink to prevent thermal throttling.
-
The recommended gate drive voltage for the IPT60R022S7 is between 10V and 15V. However, the device can tolerate gate voltages up to 20V. It's essential to ensure the gate drive voltage is within the recommended range to prevent damage to the device and ensure optimal performance.
-
Yes, the IPT60R022S7 is suitable for high-frequency switching applications due to its low gate charge (Qg) of 22nC and low output capacitance (Coss) of 220pF. However, it's essential to consider the device's switching losses, thermal performance, and PCB layout to ensure reliable operation at high frequencies.
-
To protect the IPT60R022S7 from overvoltage and overcurrent, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) to limit the voltage across the device. Additionally, consider using a current sense resistor and a fuse or a current limiter to prevent overcurrent conditions.
Trust Checks
Expert Contribution
System Verified
Community Approved
IPT60R022S7 Overview

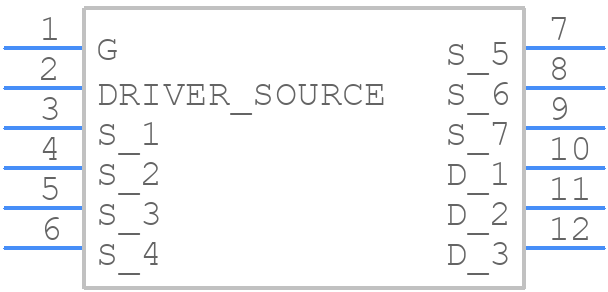

Use the download button to access the IPT60R022S7 schematic symbol, PCB footprint, and 3D model.
