IPZA60R099P7XKSA1 - Infineon

Description: N-Channel 600 V 31A (Tc) 117W (Tc) Through Hole PG-TO247-4

Download IPZA60R099P7XKSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IPZA60R099P7XKSA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

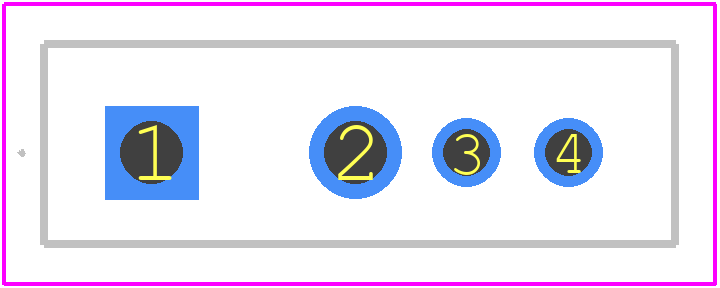

IPZA60R099P7XKSA1 - Infineon PCB footprint - Other - Other - IPZA60R099P7XKSA1-3
click to zoom
3D Models
IPZA60R099P7XKSA1 - Infineon - 3D model - Other - IPZA60R099P7XKSA1-3
click to zoom

IPZA60R099P7XKSA1 Details

  • Manufacturer Part Number:

    IPZA60R099P7XKSA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-247-4-3, 4 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.18

  • Avalanche Energy Rating (Eas):

    105 mJ

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain-source On Resistance-Max:

    0.099 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-247

  • JESD-30 Code:

    R-PSFM-T4

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    100 A

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
