The recommended PCB layout for optimal thermal performance involves placing the DC-DC converter near a metal edge of the PCB, using a solid copper plane for heat dissipation, and ensuring good airflow around the component.
To ensure EMC, use a metal enclosure, keep the module away from sensitive circuits, use shielded cables, and follow proper grounding and shielding techniques.
The derating curve is typically provided in the datasheet or can be obtained from the manufacturer. It shows the reduction in output power as the ambient temperature increases. For the IQE48030A050V-001-R, the derating curve indicates a 1.5% reduction in output power per degree Celsius above 40°C.
Yes, the IQE48030A050V-001-R is designed to withstand vibrations up to 10G peak acceleration. However, it's essential to ensure the module is properly secured to the PCB and the PCB is securely fastened to the chassis to prevent damage.
The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic or film capacitor, such as X7R or C0G, to ensure stable operation and minimize input ripple.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
iQE48030A050V-001-R Overview

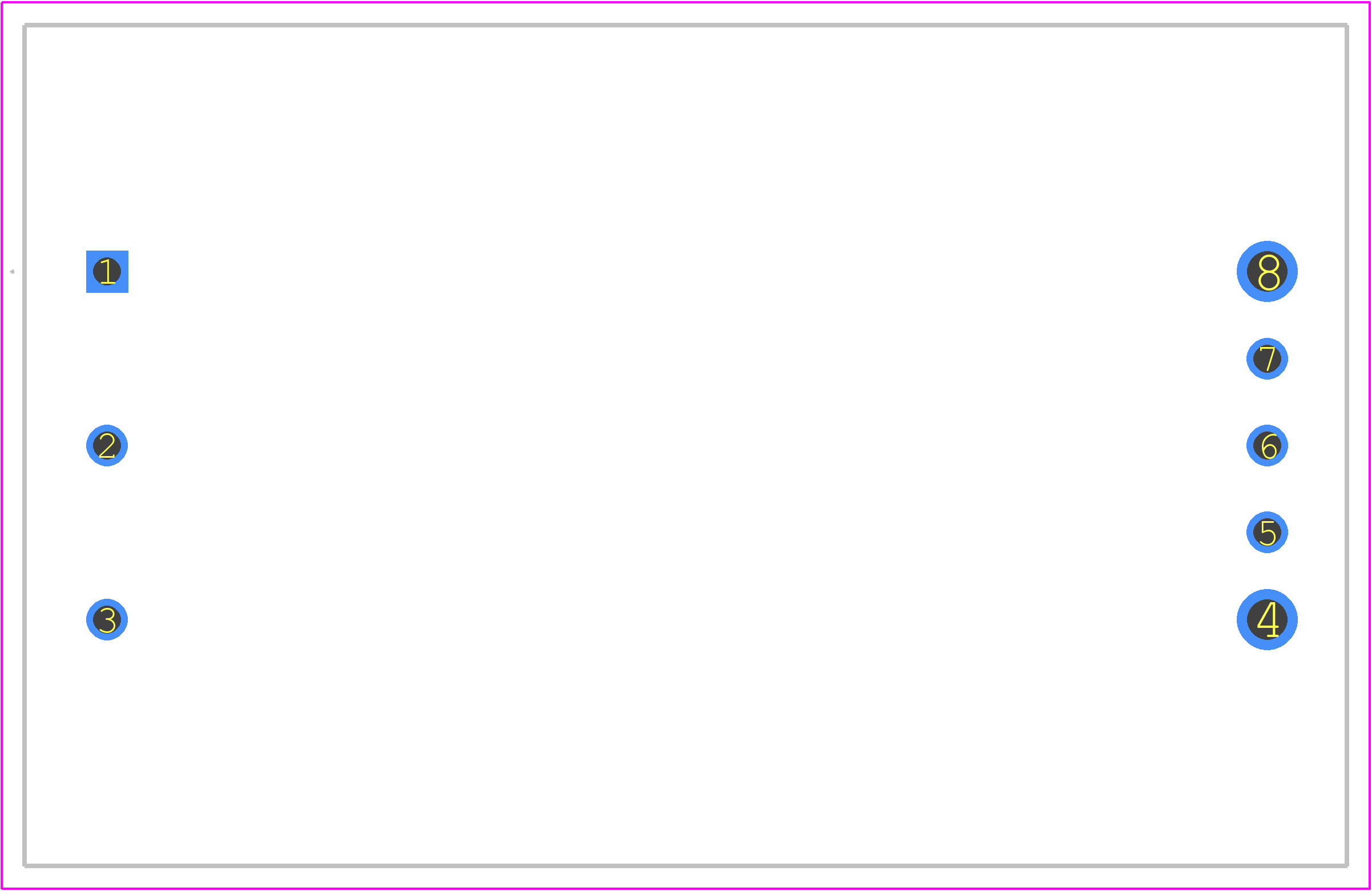

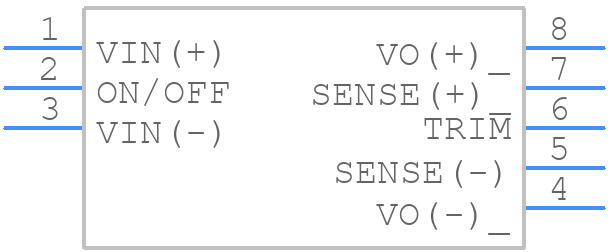

Use the download button to access the iQE48030A050V-001-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like iQE48,
or try a keyword search, such as Power Supply Modules
