IQS318101QFR footprint, schematic symbol and 3D model by Azoteq

IQS318101QFR - Azoteq

Description: > Multiple user interface options: • Single channel I2C / standalone inductive switch (with long term activation: IQS318-0xx) • Single channel I2C / standalone inductive button / single level trigger (IQS318-1xx) • Single channel I2C / standalone inductive snap button (IQS318-2xx) • Single channel I2C / standalone self-capacitive switch (with long term activation: IQS318-5xx) > 1 (self) / 2 (inductive) external sensor pad connection > DYCAL™ 2 solution: The IQS318-0xx and IQS318-5xx offers a dyna

Download IQS318101QFR Model

Schematic
symbols

PCB
footprints

3D
models

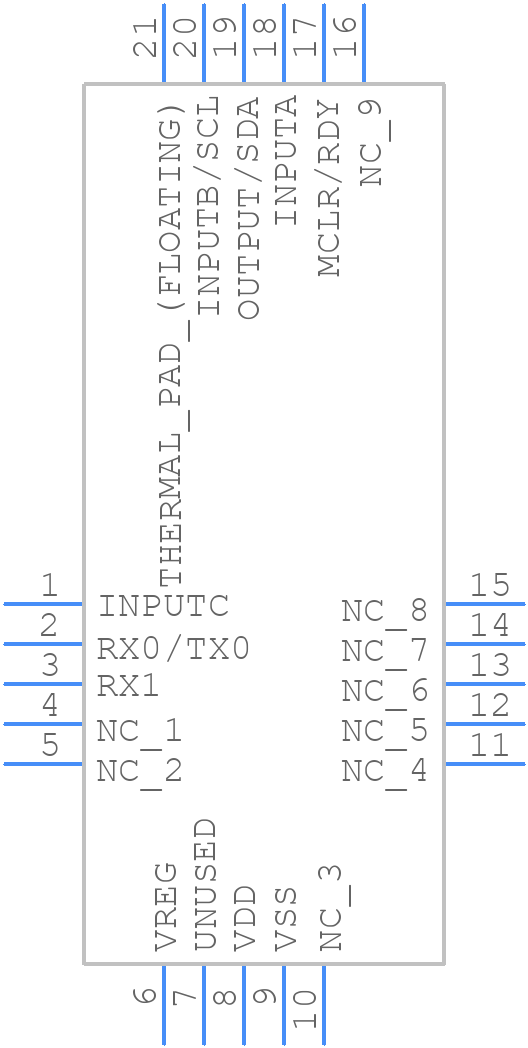

Symbol

click to zoom

PCB Footprints

IQS318101QFR - Azoteq PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN20 (QNR)...

click to zoom

3D Models

IQS318101QFR - Azoteq - 3D model - Quad Flat No-Lead - QFN20 (QNR)...

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IQS318101QFR
Part Number IQS318101QFR
Manufacturer Azoteq
Pin Count 21
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN20 (QNR)...
Released Date Jun 11, 2025
Last Modified Date Jun 11, 2025 4:32 AM UTC
Pinout / Pin List Click Here (Member Only)

IQS318101QFR Details

Manufacturer Part Number:
IQS318101QFR
Manufacturer:
Azoteq

Trust Checks

Community Provided

System Verified

Community Approved

IQS318101QFR Overview

Use the download button to access the IQS318101QFR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IQS31, or try a keyword search, such as Other Signal Circuits
