Part Image

IQS550BLQNR - Azoteq

Description: Touch Screen Controllers

Download IQS550BLQNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

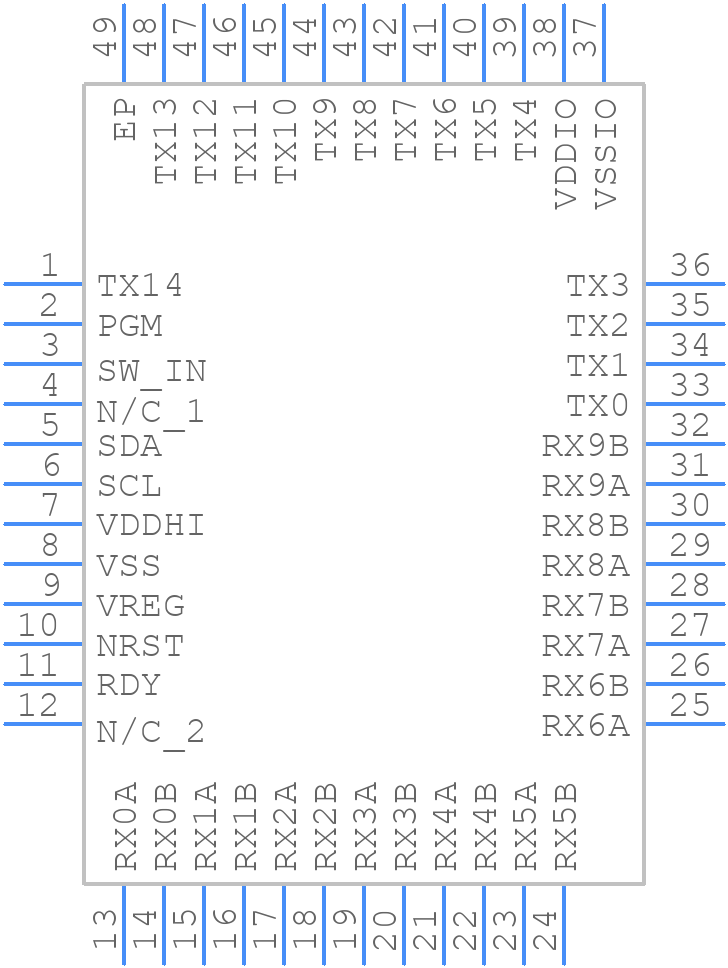

Symbol
IQS550BLQNR - Azoteq - PCB symbol
click to zoom
PCB Footprints
IQS550BLQNR - Azoteq PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48
click to zoom
3D Models
IQS550BLQNR - Azoteq - 3D model - Quad Flat No-Lead - QFN48
click to zoom

IQS550BLQNR Details

  • Manufacturer Part Number:

    IQS550BLQNR

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Azoteq

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

IQS550BLQNR Frequently Asked Questions (FAQs)

  • Azoteq recommends a 4-layer PCB with a solid ground plane, and to keep the IQS550BLQNR away from high-frequency noise sources. A good layout practice is to keep the sensor's analog and digital grounds separate and connected at a single point.
  • Azoteq provides a calibration guide and software tools to help with the calibration process. Engineers can use the IQS550BLQNR's built-in self-test and calibration features to adjust the sensor's sensitivity and offset for their specific application.
  • The IQS550BLQNR is rated for operation from -40°C to 125°C, but Azoteq recommends operating the device within the -20°C to 85°C range for optimal performance and accuracy.
  • Azoteq recommends using proper EMI shielding, such as a metal shield or a Faraday cage, to minimize electromagnetic interference. Additionally, engineers can use filtering and shielding on the IQS550BLQNR's analog and digital signals to reduce EMI effects.
  • Azoteq recommends powering up the IQS550BLQNR's analog supply (VDDA) before the digital supply (VDDD). This ensures proper initialization and prevents damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IQS550BLQNR Overview

Use the download button to access the IQS550BLQNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IQS55, or try a keyword search, such as Other Signal Circuits
