IQS7222B102QNR footprint, schematic symbol and 3D model by Azoteq

IQS7222B102QNR - Azoteq

Description: > Highly flexible ProxFusion® device > 9 (QFN) / 8 (WLCSP)external sensor pad connections > Configure up to 20 Mutual capacitive buttons,18 mutual capacitance buttons with proximity wakeup function or up to 8 self-capacitance buttonsi > Built-in basic functions: • Automatic tuning • Noise filtering • Debounce & hysteresis • Dual direction trigger indication > Design simplicity • PC Software for debugging and obtaining optimal settings and performance • One-time programmable settings for custom pow

Download IQS7222B102QNR Model

Schematic
symbols

PCB
footprints

3D
models

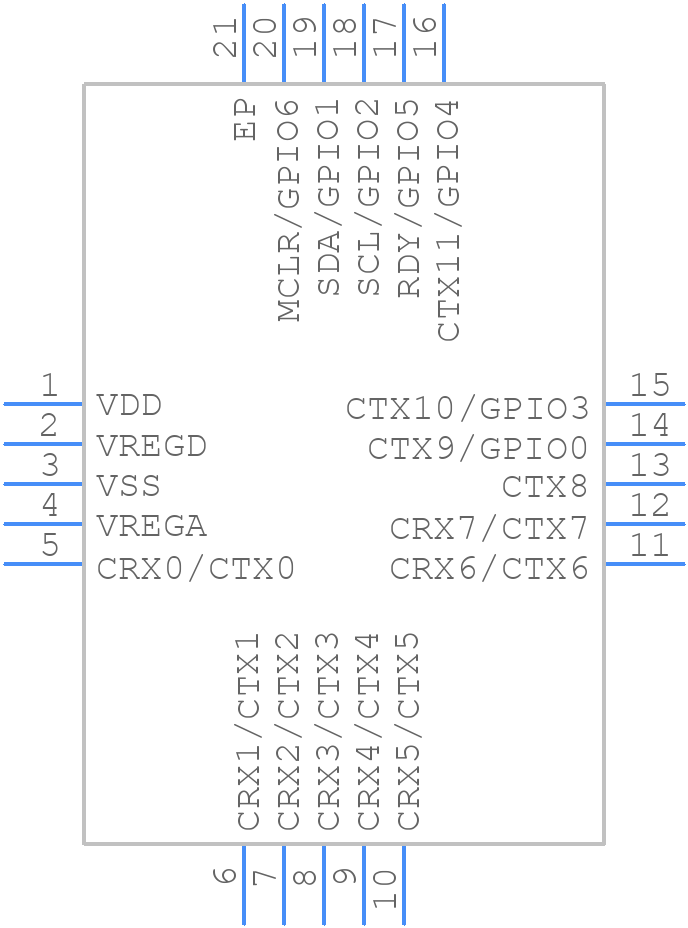

Symbol

click to zoom

PCB Footprints

IQS7222B102QNR - Azoteq PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN20 (QNR)

click to zoom

3D Models

IQS7222B102QNR - Azoteq - 3D model - Quad Flat No-Lead - QFN20 (QNR)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IQS7222B102QNR
Part Number IQS7222B102QNR
Manufacturer Azoteq
Pin Count 21
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN20 (QNR)
Released Date Mar 6, 2024
Last Modified Date Mar 6, 2024 3:00 PM UTC
Pinout / Pin List Click Here (Member Only)

IQS7222B102QNR Details

Manufacturer Part Number:
IQS7222B102QNR
Manufacturer:
Azoteq

Trust Checks

Community Provided

System Verified

Community Approved

IQS7222B102QNR Overview

Use the download button to access the IQS7222B102QNR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IQS72, or try a keyword search, such as Other Sensors/Transducers
