Part Image

IR1150IPBF - Infineon

Description: PFC IC Continuous Conduction (CCM) 200kHz 8-PDIP

Download IR1150IPBF Model

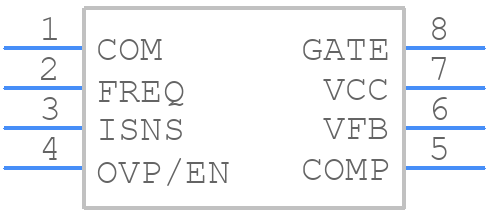

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IR1150IPBF - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 Lead PDIP
click to zoom
3D Models
IR1150IPBF - Infineon  - 3D model - Dual-In-Line Packages - 8 Lead PDIP
click to zoom

IR1150IPBF Details

  • Manufacturer Part Number:

    IR1150IPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    15 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.905 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    6.8 V

  • Output Voltage-Min:

    5.17 V

  • Output Voltage-Nom:

    6.15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    40 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    200 kHz

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

IR1150IPBF Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider using a thermistor or thermal sensor to monitor the device temperature.
  • Monitor the input voltage, output voltage, current, and temperature. Also, keep an eye on the device's power dissipation, especially during high-load conditions.
  • Use a voltage regulator or a voltage supervisor to regulate the input voltage. Add overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients.
  • Use ESD protection diodes or TVS diodes on the input and output pins. Ensure that the PCB design includes ESD protection features, such as guard rings and ESD-safe layout practices.
