IR1150ISTRPBF - Infineon

Description: uPFC ONE CYCLE CONTROL PFC IC

Download IR1150ISTRPBF Model

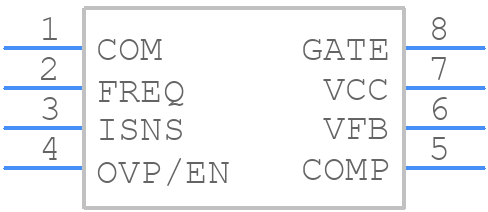

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IR1150ISTRPBF - Infineon PCB footprint - Other - Other - SOIC127P600X175-8N
click to zoom
3D Models
IR1150ISTRPBF - Infineon  - 3D model - Other - SOIC127P600X175-8N
click to zoom

IR1150ISTRPBF Details

  • Manufacturer Part Number:

    IR1150ISTRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    15 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    6.8 V

  • Output Voltage-Min:

    5.17 V

  • Output Voltage-Nom:

    6.15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    40 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    200 kHz

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm
