IR11682SPBF - Infineon

Description: DUAL SmartRectifier DRIVER IC

Download IR11682SPBF Model

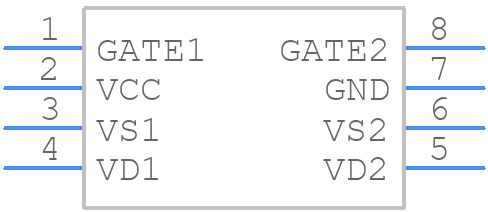

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IR11682SPBF - Infineon PCB footprint - Other - Other - SOIC127P600X175-8N
click to zoom
3D Models
IR11682SPBF - Infineon  - 3D model - Other - SOIC127P600X175-8N
click to zoom

IR11682SPBF Details

  • Manufacturer Part Number:

    IR11682SPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    60 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    8.6 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.12 µs

  • Turn-on Time:

    0.2 µs

  • Width:

    3.9 mm

IR11682SPBF Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermally conductive material for the PCB, and follow the recommended thermal design guidelines. Also, consider using a thermal interface material (TIM) between the device and the heat sink.
  • The maximum allowed voltage on the VIN pin is 30V, but it's recommended to keep it below 28V to ensure reliable operation and to prevent damage to the device.
  • Use a fuse or a current limiter in series with the VIN pin to protect against overcurrent conditions. Also, consider using a voltage regulator or a TVS diode to protect against overvoltage conditions.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for the VIN pin to filter out noise and ripple.
