The maximum voltage rating of the IR2114SSPBF is 600V, making it suitable for high-voltage applications.
Proper thermal management can be achieved by providing a heat sink, ensuring good airflow, and keeping the device away from heat sources. The thermal resistance of the package is 2.5°C/W, and the maximum junction temperature is 150°C.
The bootstrap capacitor is used to generate the high-side gate drive voltage. It is charged through the bootstrap diode and discharged through the high-side FET, allowing the high-side FET to be driven.
The bootstrap capacitor value depends on the specific application and the required gate drive voltage. A general guideline is to use a capacitor with a value between 10nF to 100nF, with a voltage rating of at least 2x the maximum voltage of the high-side FET.
The recommended dead time for the IR2114SSPBF is typically in the range of 100ns to 500ns, depending on the specific application and the required switching frequency.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IR2114SSPBF Overview

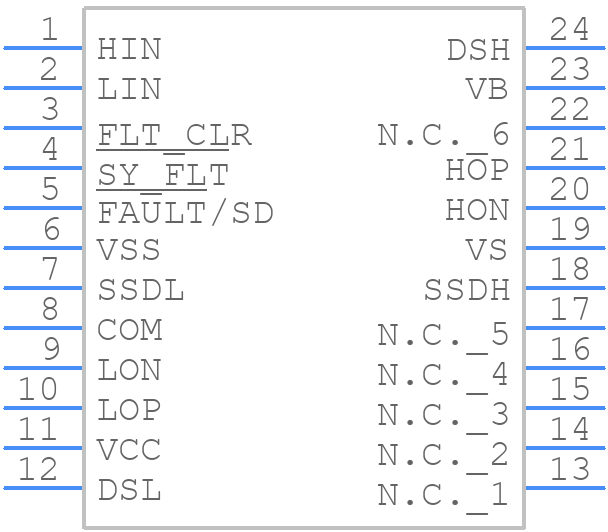

Use the download button to access the IR2114SSPBF schematic symbol, PCB footprint, and 3D model.
