Part Image

IR2117PBF - Infineon

Description: Infineon IR2117PBF High Side MOSFET Power Driver, 0.5A, 10 → 20 V, PDIP 8-Pin

Download IR2117PBF Model

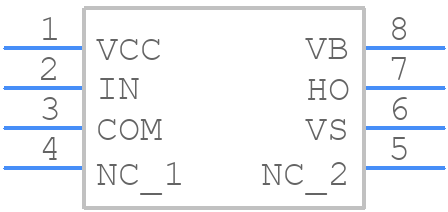

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IR2117PBF - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead PDIP
click to zoom
3D Models
IR2117PBF - Infineon  - 3D model - Dual-In-Line Packages - 8-Lead PDIP
click to zoom

IR2117PBF Details

  • Manufacturer Part Number:

    IR2117PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5.65

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    5 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.18 µs

  • Turn-on Time:

    0.2 µs

  • Width:

    7.62 mm

IR2117PBF Frequently Asked Questions (FAQs)

  • The maximum voltage rating of the IR2117PBF is 500V, which is the maximum voltage that can be applied between the VCC and COM pins.
  • To ensure proper thermal management, it is recommended to provide a heat sink or a thermal pad to dissipate heat generated by the device. The thermal resistance of the package is 2.5°C/W, and the maximum junction temperature is 150°C.
  • The SD (Shutdown) pin is an active-low input that allows the user to shut down the device when pulled low. When the SD pin is low, the device enters a low-power state, reducing the quiescent current to less than 1mA.
  • The deadtime of the IR2117PBF can be configured using external resistors and capacitors connected to the DT pin. The deadtime is programmable from 100ns to 10μs, allowing for flexibility in designing the switching pattern.
  • The maximum frequency of operation of the IR2117PBF is 500kHz, making it suitable for high-frequency switching applications such as DC-DC converters and motor control systems.
