IR2133JPBF - Infineon

Description: Infineon IR2133JPBF Hex Half Bridge MOSFET Power Driver, 500mA, 10 → 20 V, Non-Inverting, PLCC 44-Pin

Download IR2133JPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

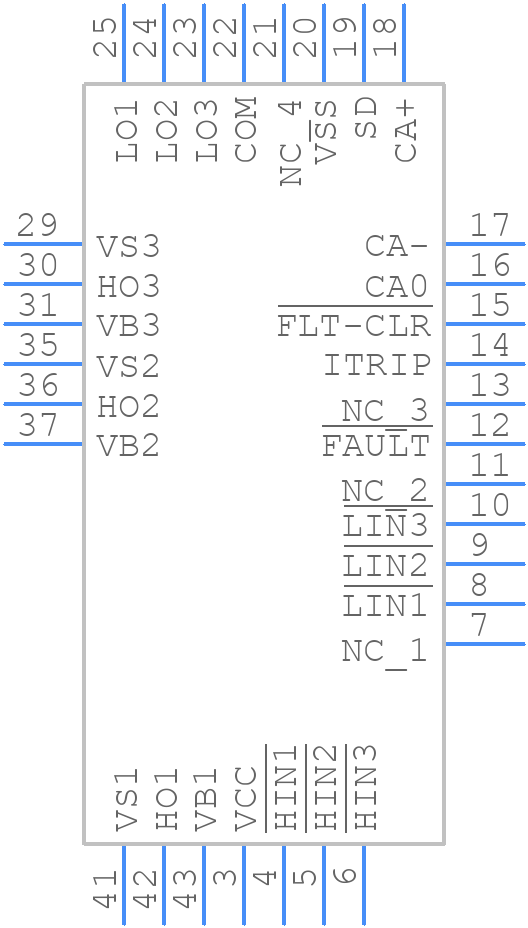

Symbol
IR2133JPBF - Infineon - PCB symbol
click to zoom

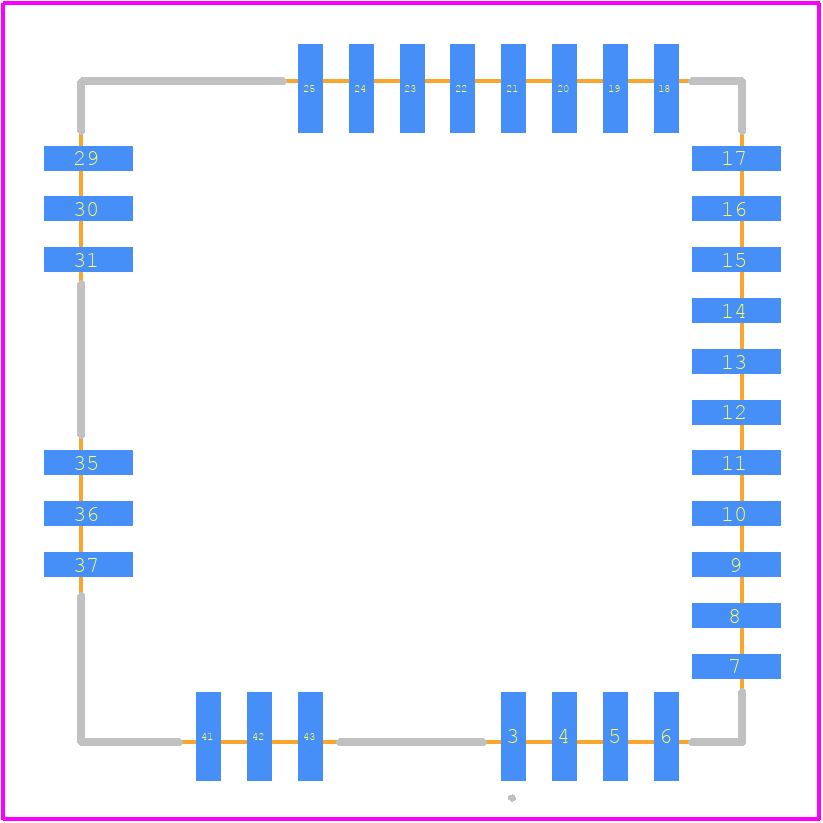

PCB Footprints
IR2133JPBF - Infineon PCB footprint - Other - Other - IR2133JPBF-2
click to zoom
3D Models
IR2133JPBF - Infineon - 3D model - Other - IR2133JPBF-2
click to zoom

IR2133JPBF Details

  • Manufacturer Part Number:

    IR2133JPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    FLOATING LOAD DRIVER; UNDER VOLTAGE LOCKOUT CIRCUIT

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    S-PQCC-J32

  • JESD-609 Code:

    e3

  • Length:

    16.5862 mm

  • Number of Functions:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC44,.7SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    600 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.95 µs

  • Turn-on Time:

    1 µs

  • Width:

    16.5862 mm

IR2133JPBF Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the IR2133JPBF is 600 kHz, but it can be adjusted up to 1 MHz with an external oscillator.
  • Proper thermal management can be achieved by providing a heat sink, ensuring good airflow, and keeping the device away from heat sources. The thermal pad on the bottom of the package should be connected to a copper plane on the PCB to dissipate heat.
  • The recommended layout and routing for the IR2133JPBF involves keeping the high-current paths short and wide, using a solid ground plane, and minimizing the loop area of the high-frequency circuits. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The IR2133JPBF has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, additional protection can be achieved by using external voltage regulators, TVS diodes, and fuses to protect against voltage transients and surges.
  • The recommended input capacitance is 10-22 μF, and the recommended output capacitance is 10-47 μF. The capacitance values depend on the specific application and the desired level of filtering and decoupling.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IR2133JPBF Overview

Use the download button to access the IR2133JPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IR213, or try a keyword search, such as MOSFET Drivers
