Part Image

IR2175STRPBF - Infineon

Description: Motor/Motion/Ignition Controllers & Drivers Lin Cur Sens IC

Download IR2175STRPBF Model

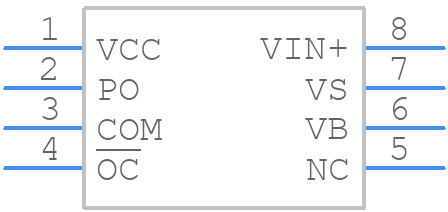

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IR2175STRPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8 SOIC
click to zoom
3D Models
IR2175STRPBF - Infineon  - 3D model - Small Outline Packages - 8 SOIC
click to zoom

IR2175STRPBF Details

  • Manufacturer Part Number:

    IR2175STRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, MS-012AA, SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    255

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    9.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

IR2175STRPBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The high-current paths should be kept short and wide, and the decoupling capacitors should be placed close to the IC.
  • The bootstrap capacitor value depends on the switching frequency, output voltage, and current. A general rule of thumb is to choose a capacitor with a value between 10nF to 100nF, and a voltage rating of at least 2x the output voltage.
  • The maximum allowed voltage on the VCC pin is 15V, but it's recommended to keep it below 12V to ensure reliable operation and to prevent damage to the IC.
  • Use a voltage supervisor or a voltage monitor IC to detect overvoltage and undervoltage conditions, and use a reset or shutdown signal to protect the IR2175STRPBF. Additionally, consider using a TVS diode or a zener diode to clamp the input voltage.
  • The recommended operating temperature range for the IR2175STRPBF is -40°C to 125°C, but it's recommended to keep the junction temperature below 100°C to ensure reliable operation and to prevent thermal shutdown.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IR2175STRPBF Overview

Use the download button to access the IR2175STRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IR217, or try a keyword search, such as Power Management Circuits

Parts related to IR2175STRPBF

Showing 0 results

IR2175STRPBF Alternates

Showing results

Image Part Number Model
Part Image IR2175SPBF International Rectifier

Voltage Supervisor/Reset IC, Fixed, 1 Channel, PDSO8

Part Image IR2175S Infineon Technologies AG

Voltage Supervisor/Reset IC, Fixed, 1 Channel, PDSO8

Part Image IR2175STR International Rectifier

Power Management Circuit, PDSO8
