IR3537MTRPBF - Infineon

Description: Gate Drivers 12V HI EFFICIENCY MOSFET DRVR

Download IR3537MTRPBF Model

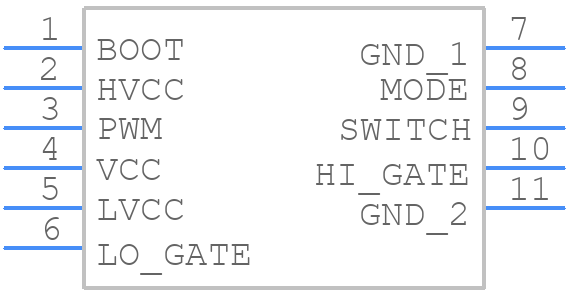

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IR3537MTRPBF - Infineon PCB footprint - Other - Other - IR3537MTRPBF-1
click to zoom
3D Models
IR3537MTRPBF - Infineon  - 3D model - Other - IR3537MTRPBF-1
click to zoom

IR3537MTRPBF Details

  • Manufacturer Part Number:

    IR3537MTRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    10.8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    13.2 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

IR3537MTRPBF Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to ensure optimal thermal performance.
  • Ensure proper thermal management by providing adequate heat sinking, and consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
  • Infineon recommends using X7R or X5R ceramic capacitors with a voltage rating of 10V or higher for input and output capacitors, with a capacitance value of 4.7uF to 10uF.
  • Use a shielded enclosure, keep sensitive components away from the IR3537MTRPBF, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
  • Infineon recommends a soldering profile with a peak temperature of 260°C, a dwell time of 30-60 seconds, and a cooling rate of 4°C/s to prevent thermal shock.
