A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
Ensure proper heat sinking, use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K, and follow the recommended PCB layout guidelines. Also, consider using a thermocouple or thermistor to monitor the device temperature.
Critical components include the input capacitors, output inductors, and output capacitors. Ensure that these components are selected based on the specific application requirements and follow the recommended component values and layout guidelines.
Use an oscilloscope to monitor the input and output voltages, and check for any signs of oscillation or ringing. Verify that the input voltage is within the recommended range and that the device is properly heat-sunk. Also, check for any signs of physical damage or contamination.
Use a shielded enclosure, ensure proper grounding and bonding, and follow the recommended PCB layout guidelines to minimize radiated emissions. Also, consider using EMI filters or common-mode chokes to reduce conducted emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IR3598MTRPBF Overview

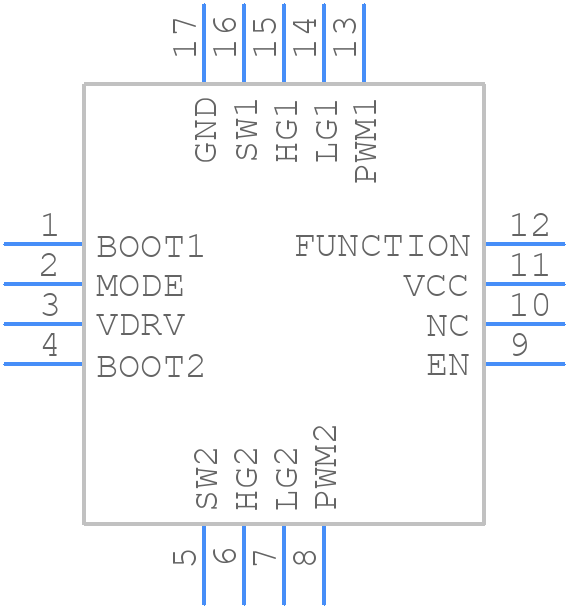

Use the download button to access the IR3598MTRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IR359,
or try a keyword search, such as MOSFET Drivers
