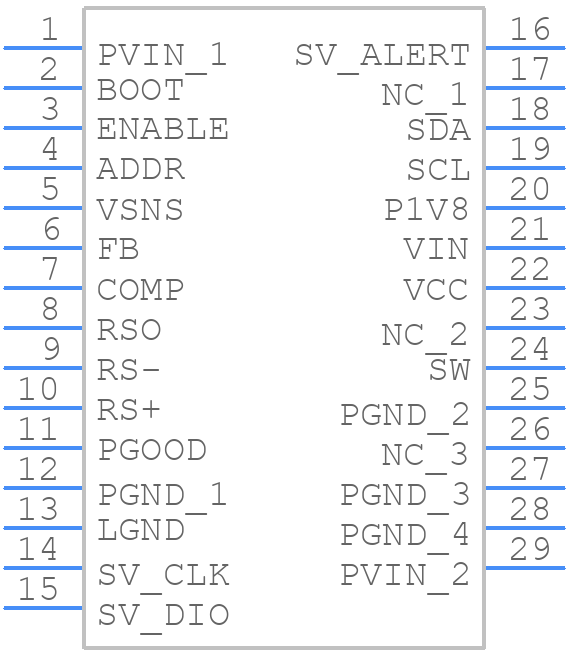

IR38165MTRPBFAUMA1 - Infineon

IR38165MTRPBFAUMA1 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  Infineon recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to ensure optimal thermal performance.
• How do I ensure reliable operation in high-temperature environments?
  To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the thermal derating curve provided in the datasheet, and to ensure good thermal conduction to the PCB and heat sink.
• What are the recommended soldering conditions for this device?
  Infineon recommends soldering the device using a reflow soldering process with a peak temperature of 260°C for a maximum of 30 seconds, and a soldering iron temperature of 350°C for a maximum of 3 seconds.
• How do I troubleshoot issues with the device's overcurrent protection feature?
  To troubleshoot issues with the device's overcurrent protection feature, check the input voltage, output current, and sense resistor values to ensure they are within the recommended specifications, and verify that the device is properly configured and enabled.
• What are the recommended input and output capacitors for this device?
  Infineon recommends using X7R or X5R ceramic capacitors with a voltage rating of 10V or higher for the input and output capacitors, and ensuring that the capacitors are placed close to the device's pins to minimize parasitic inductance.
