Infineon provides a recommended PCB layout in the application note AN-1145, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
The input capacitor selection depends on the input voltage, ripple current, and ESR requirements. Infineon recommends using a capacitor with a minimum capacitance of 10uF, a voltage rating of 1.5 times the input voltage, and an ESR of less than 1 ohm. The application note AN-1145 provides more detailed guidelines.
The maximum junction temperature for the IR3820AMTRPBF is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
Yes, the IR3820AMTRPBF is AEC-Q100 qualified, which makes it suitable for automotive and high-reliability applications. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific application requirements.
Infineon provides a troubleshooting guide in the application note AN-1145, which covers common issues and their solutions. Additionally, engineers can use tools like oscilloscopes and thermal cameras to diagnose problems and optimize the design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IR3820AMTRPBF Overview

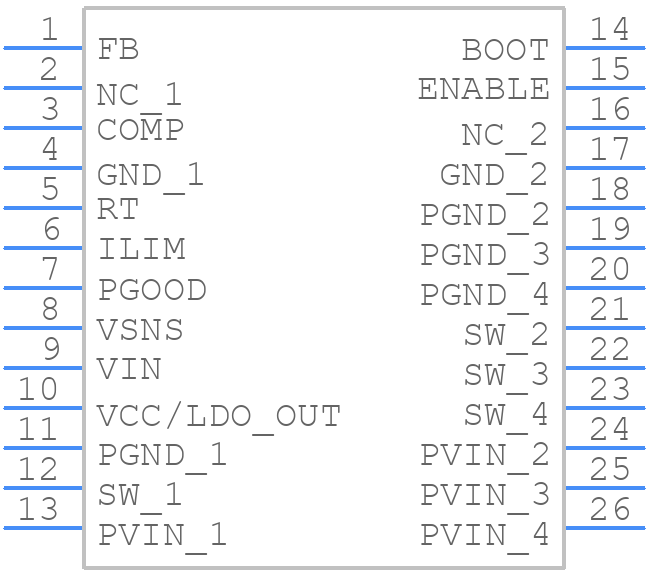

Use the download button to access the IR3820AMTRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IR382,
or try a keyword search, such as Switching Regulator or Controllers
