IR3820MTRPBF - Infineon

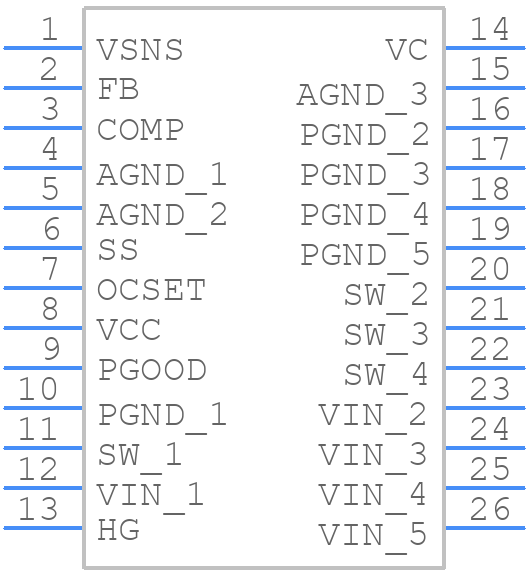

IR3820MTRPBF Details

• Manufacturer Part Number:

  IR3820MTRPBF

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  5 X 6 MM, ROHS COMPLIANT, QFN-15

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  0

• Additional Feature:

  ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 12V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  21 V

• Input Voltage-Min:

  2.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-XQCC-N15

• JESD-609 Code:

  e3

• Length:

  6 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  15

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  12 A

• Output Voltage-Nom:

  1.8 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HQCCN

• Package Equivalence Code:

  LCC(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Current-Max (Isup):

  13 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  660 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  5 mm
