IR3823AMTRPBFAUMA1 - Infineon

Description: Switching Voltage Regulators IFX POL

Download IR3823AMTRPBFAUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

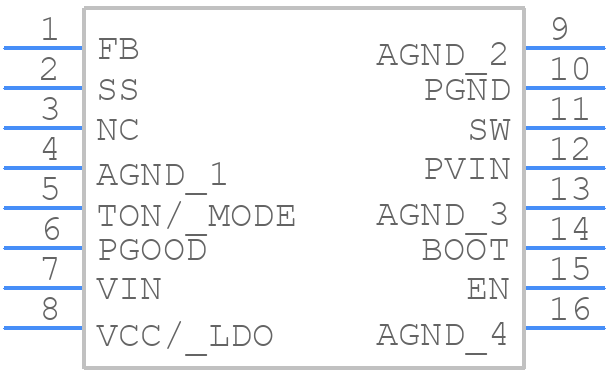

Symbol
IR3823AMTRPBFAUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
IR3823AMTRPBFAUMA1 - Infineon PCB footprint - Other - Other - IR3823AMTRPBFAUMA1-1
click to zoom
3D Models
IR3823AMTRPBFAUMA1 - Infineon - 3D model - Other - IR3823AMTRPBFAUMA1-1
click to zoom

IR3823AMTRPBFAUMA1 Details

  • Manufacturer Part Number:

    IR3823AMTRPBFAUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PQFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.13SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3.5 mm

IR3823AMTRPBFAUMA1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to ensure good heat dissipation.
  • The device requires a stable input voltage (VIN) and a proper bias voltage (VBIAS) to ensure optimal performance. A voltage regulator or a voltage reference can be used to generate the bias voltage.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor (CIN). This value provides a good balance between input ripple rejection and stability.
  • The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet or to use an inductor selection tool provided by the manufacturer.
  • The maximum ambient temperature for the IR3823 is 105°C. However, the device can operate at higher temperatures with derating. Consult the datasheet for more information.
