IRAMX16UP60B-2 - Infineon

Description: Infineon IRAMX16UP60B-2, AC Induction Motor Driver IC, 600 V 16A 23-Pin, SIP

Download IRAMX16UP60B-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

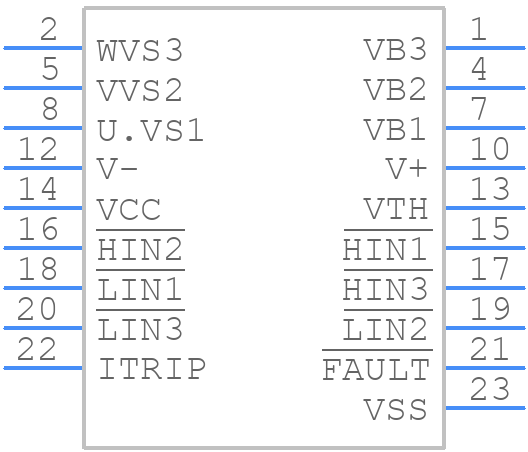

Symbol
IRAMX16UP60B-2 - Infineon - PCB symbol
click to zoom

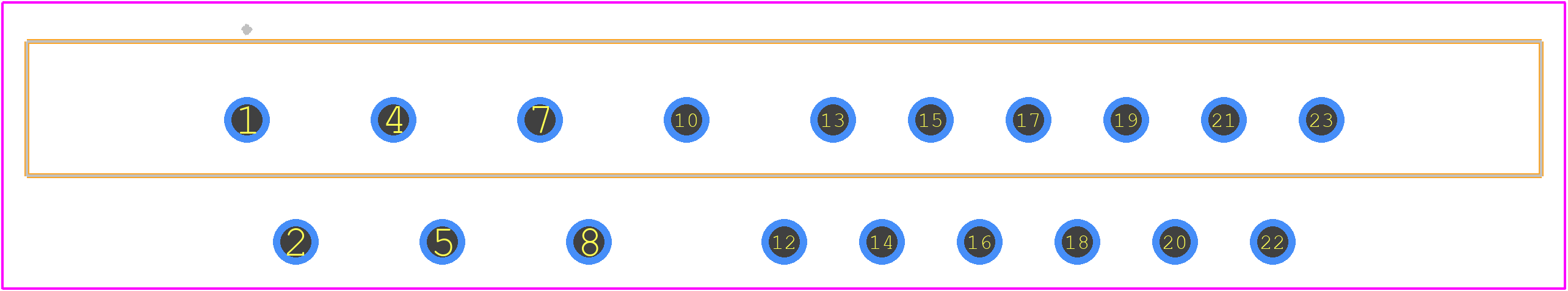

PCB Footprints
IRAMX16UP60B-2 - Infineon PCB footprint - Other - Other - IRAMX16UP60B-2
click to zoom
3D Models
IRAMX16UP60B-2 - Infineon - 3D model - Other - IRAMX16UP60B-2
click to zoom

IRAMX16UP60B-2 Details

  • Manufacturer Part Number:

    IRAMX16UP60B-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SIP-23/19

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XZFM-T19

  • Number of Functions:

    1

  • Number of Terminals:

    19

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    30 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP19/23H,.2,.1,78FL

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    12 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.98 mm

  • Terminal Position:

    ZIG-ZAG

IRAMX16UP60B-2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRAMX16UP60B-2 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, and ensuring good airflow around the device.
  • The recommended gate drive voltage for the IRAMX16UP60B-2 is between 10V and 15V, with a maximum voltage of 20V.
  • To protect the device, use a suitable overvoltage protection (OVP) circuit and overcurrent protection (OCP) mechanism, such as a fuse or a current-sensing resistor.
  • The maximum allowable power dissipation for the IRAMX16UP60B-2 is 150W, but this can be increased with proper heat sinking and thermal management.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IRAMX16UP60B-2 Overview

Use the download button to access the IRAMX16UP60B-2 schematic symbol, PCB footprint, and 3D model.
