IRF130 - Infineon

Description: IRF130 Series 100 V 0.18 Ohm 12 nC Through Hole N-Channel Power MOSFET - TO-3

Download IRF130 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IRF130 - Infineon - PCB symbol
click to zoom
PCB Footprints

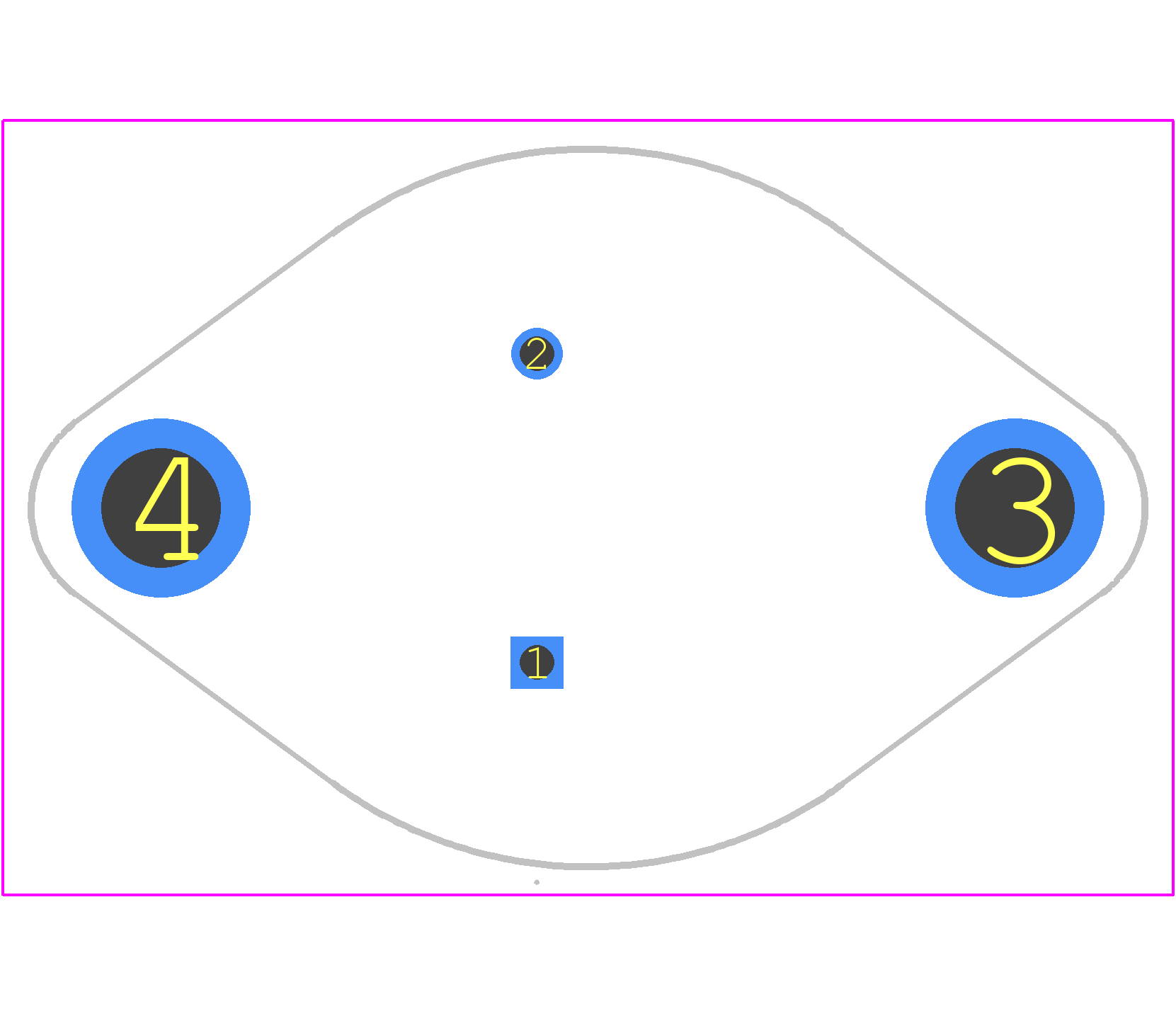

IRF130 - Infineon PCB footprint - Other - Other - TO-204AA (Modified TO-3)
click to zoom
3D Models
IRF130 - Infineon - 3D model - Other - TO-204AA (Modified TO-3)
click to zoom

IRF130 Details

  • Manufacturer Part Number:

    IRF130

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    4

  • Avalanche Energy Rating (Eas):

    75 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    14 A

  • Drain-source On Resistance-Max:

    0.21 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-204AA

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e0

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    75 W

  • Pulsed Drain Current-Max (IDM):

    56 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IRF130 Frequently Asked Questions (FAQs)

  • The IRF130 can operate safely between -55°C to 175°C, but the recommended operating temperature range is -40°C to 150°C for optimal performance.
  • To ensure proper biasing, the gate-source voltage (Vgs) should be between 2V to 4V for optimal performance. A higher Vgs can lead to increased power consumption and reduced efficiency.
  • The IRF130 has a maximum continuous drain current (ID) rating of 13A, but it's recommended to derate the current to 10A for optimal reliability and to prevent overheating.
  • To protect the IRF130, use a voltage regulator to limit the voltage to the recommended maximum of 100V. Additionally, use a current sense resistor and a fuse to detect and respond to overcurrent conditions.
  • For optimal thermal performance, use a PCB with a large copper area for heat dissipation. Ensure good thermal conductivity by using thermal vias and a heat sink if necessary. Keep the PCB layout compact to minimize parasitic inductance and capacitance.
