IRF250 - Infineon

Description: Power MOSFET, N Channel, 200 V, 30 A, 0.085 ohm, TO-204AA, Through Hole

Download IRF250 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

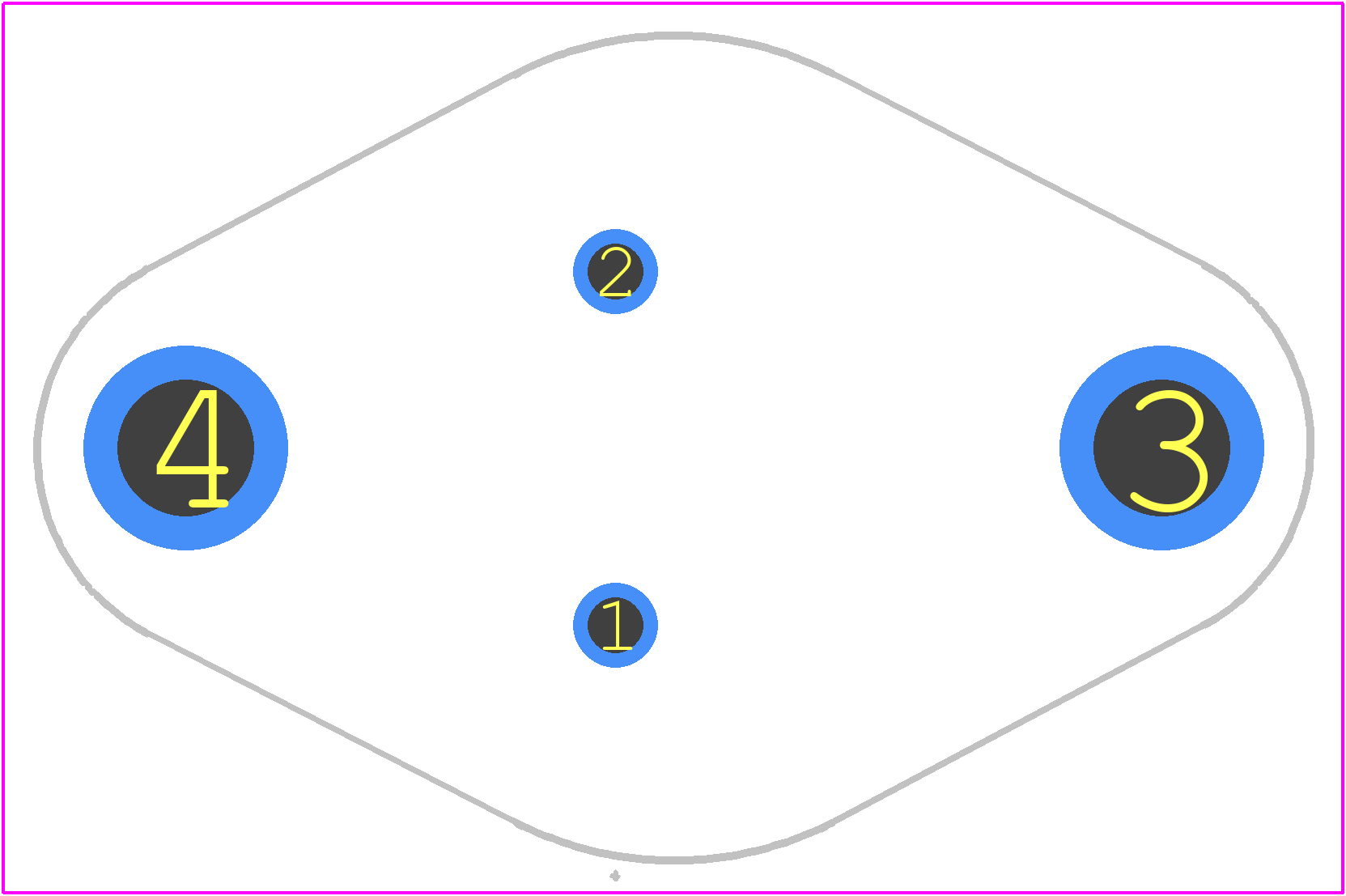

IRF250 - Infineon PCB footprint - Other - Other - TO-3 (TO-204AE)
click to zoom
3D Models
IRF250 - Infineon  - 3D model - Other - TO-3 (TO-204AE)
click to zoom

IRF250 Details

  • Manufacturer Part Number:

    IRF250

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    4.41

  • Avalanche Energy Rating (Eas):

    500 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    200 V

  • Drain Current-Max (ID):

    30 A

  • Drain-source On Resistance-Max:

    0.09 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-204AE

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e0

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    150 W

  • Pulsed Drain Current-Max (IDM):

    120 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IRF250 Frequently Asked Questions (FAQs)

  • The IRF250 can operate safely between -55°C to 175°C, but the maximum junction temperature (TJ) should not exceed 175°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of 1.5°C/W or lower, and ensuring good thermal contact between the device and heat sink.
  • The maximum voltage rating for the IRF250 is 250V, but it's recommended to operate at a maximum voltage of 200V to ensure reliable operation.
  • Use a voltage regulator or a voltage clamp to prevent overvoltage, and consider adding overcurrent protection using a fuse or a current sense resistor.
  • Yes, the IRF250 is suitable for high-frequency switching applications up to 100 kHz, but ensure proper gate drive and layout to minimize switching losses.
