IRF360 - Infineon

Description: Trans MOSFET N-CH 400V 25A 3-Pin(2+Tab) TO-204AE

Download IRF360 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IRF360 - Infineon - PCB symbol
click to zoom
PCB Footprints

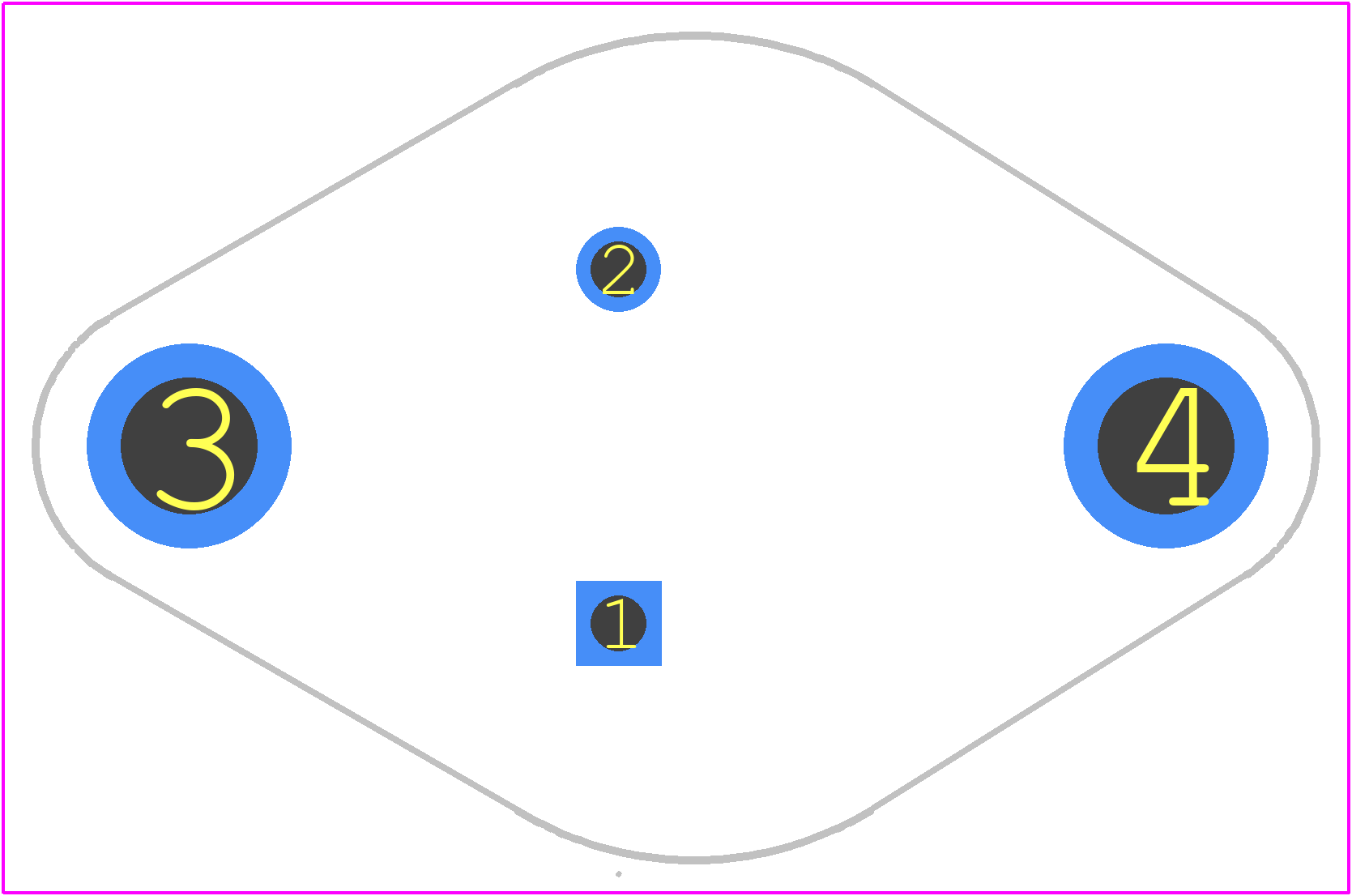

IRF360 - Infineon PCB footprint - Other - Other - 39.37mm x 25.53mm
click to zoom
3D Models
IRF360 - Infineon - 3D model - Other - 39.37mm x 25.53mm
click to zoom

IRF360 Details

  • Manufacturer Part Number:

    IRF360

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-3, 2 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    4.46

  • Avalanche Energy Rating (Eas):

    980 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    400 V

  • Drain Current-Max (ID):

    25 A

  • Drain-source On Resistance-Max:

    0.23 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-204AE

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e0

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    300 W

  • Pulsed Drain Current-Max (IDM):

    100 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IRF360 Frequently Asked Questions (FAQs)

  • The IRF360 can operate safely between -55°C to 175°C, but the recommended operating temperature range is -40°C to 150°C for optimal performance and reliability.
  • The IRF360 has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal interface material to ensure efficient heat dissipation. A thermal resistance of less than 1°C/W is recommended.
  • The IRF360 has a maximum voltage rating of 400V, but it's recommended to operate it at a maximum voltage of 350V to ensure reliable operation and minimize the risk of breakdown.
  • It's recommended to use a fuse or a current limiter in series with the IRF360 to protect it from overcurrent. Additionally, a voltage clamp or a transient voltage suppressor can be used to protect the device from overvoltage and voltage spikes.
  • The recommended gate drive voltage for the IRF360 is between 10V to 15V, with a maximum gate-source voltage of ±20V. A gate drive voltage of 12V is a common choice for most applications.
